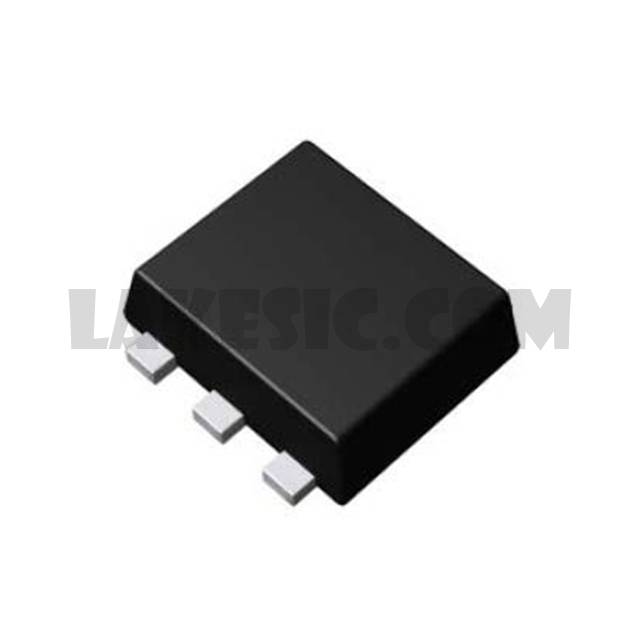

ES6U1T2R

ES6U1T2R

Part NumberES6U1T2R

ManufacturerRohm Semiconductor

DescriptionMOSFET P-CH 12V 1.3A WEMT6

DatasheetES6U1

Package / CaseSOT-563, SOT-666

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 12V 1.3A (Ta) 700mW (Ta) Surface Mount 6-WEMT

To learn about the specification of ES6U1T2R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ES6U1T2R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ES6U1T2R.
We are offering ES6U1T2R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ES6U1T2R - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	ES6U1
Standard Package	1
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Not For New Designs
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	1.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	260mOhm @ 1.3A, 4.5V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	2.4nC @ 4.5V
Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	290pF @ 6V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	700mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WEMT
Package / Case	SOT-563, SOT-666
