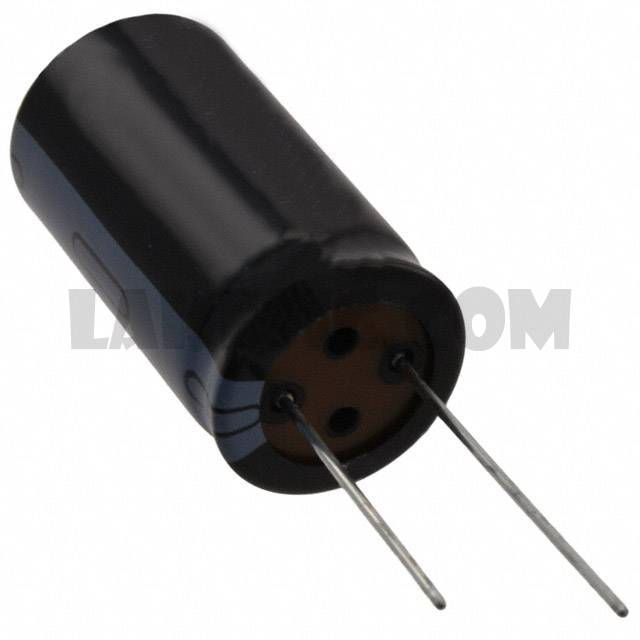

ESMG201ELL561MP40S

Part NumberESMG201ELL561MP40S

To learn about the specification of ESMG201ELL561MP40S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ESMG201ELL561MP40S with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ESMG201ELL561MP40S.
We are offering ESMG201ELL561MP40S for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	SMG Series
Standard Package	250
Manufacturer	United Chemi-Con
Series	SMG
Packaging	Bulk
Part Status	Last Time Buy
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	200V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.43A @ 120Hz
Ripple Current @ High Frequency	2.145A @ 100kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
