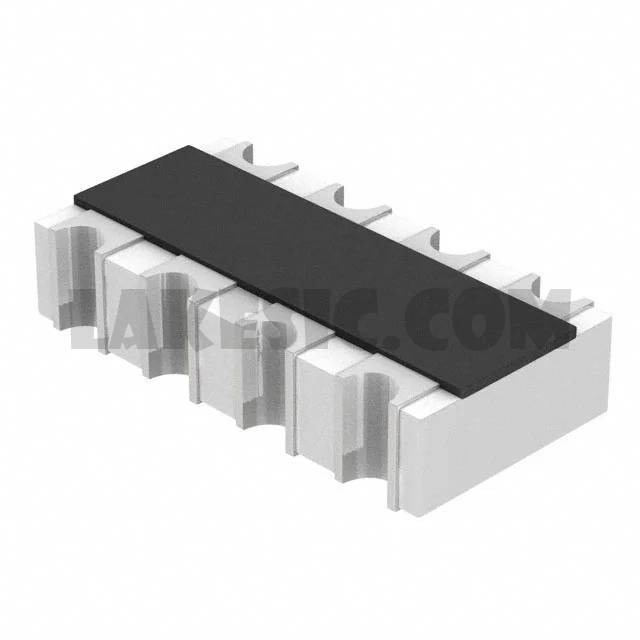

EXB-N8V750JX

Part NumberEXB-N8V750JX

ManufacturerPanasonic Electronic Components

DescriptionRES ARRAY 4 RES 75 OHM 0804

DatasheetEXB-xxV Series Datasheet

Package / Case0804, Concave, Long Side Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description75 Ohm ±5% 31mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 0804, Concave, Long Side Terminals

To learn about the specification of EXB-N8V750JX, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EXB-N8V750JX with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EXB-N8V750JX.
We are offering EXB-N8V750JX for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

EXB-N8V750JX - Product Attributes

Categories	Resistors / Resistor Networks, Arrays
Datasheet	EXB-xxV Series Datasheet
Standard Package	10000
Manufacturer	Panasonic Electronic Components
Series	EXB
Packaging	Tape & Reel (TR)
Part Status	Active
Circuit Type	Isolated
Resistance (Ohms)	75
Tolerance	±5%
Number of Resistors	4
Resistor Matching Ratio	-
Resistor-Ratio-Drift	-
Number of Pins	8
Power Per Element	31mW
Temperature Coefficient	±200ppm/°C
Operating Temperature	-55°C ~ 125°C
Applications	-
Mounting Type	Surface Mount
Package / Case	0804, Concave, Long Side Terminals
Supplier Device Package	0804
Size / Dimension	0.079" L x 0.039" W (2.00mm x 1.00mm)
Height - Seated (Max)	0.022" (0.55mm)
