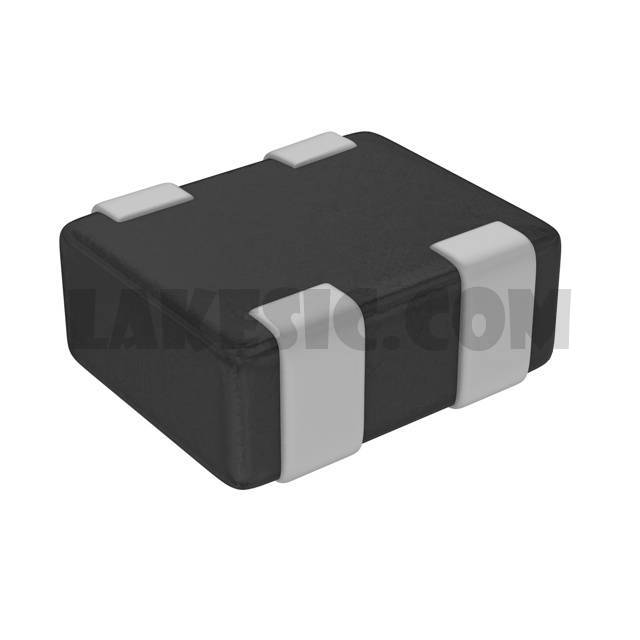

EXC-24CB102U


EXC-24CB102U

Part NumberEXC-24CB102U

Manufacturer

Description

Datasheet

Package / Case0504 (1210 Metric), 4 Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

EXC-24CB102U - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package5000
ManufacturerPanasonic Electronic Components
SeriesEXC24
PackagingTape & Reel (TR)
Part StatusActive
Filter TypeSignal Line
Number of Lines2
Impedance @ Frequency1 kOhms @ 100MHz
Current Rating (Max)50mA
DC Resistance (DCR) (Max)1.5Ohm
Voltage Rating - DC5V
Voltage Rating - AC-
Operating Temperature-40°C ~ 85°C
Ratings-
Approvals-
Features-
Mounting TypeSurface Mount
Size / Dimension0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max)0.024" (0.60mm)
Package / Case0504 (1210 Metric), 4 Lead
