FC8V22040L

FC8V22040L

Part NumberFC8V22040L

ManufacturerPanasonic Electronic Components

DescriptionMOSFET 2N-CH 24V 8A WMINI8-F1

DatasheetFC8V22040L

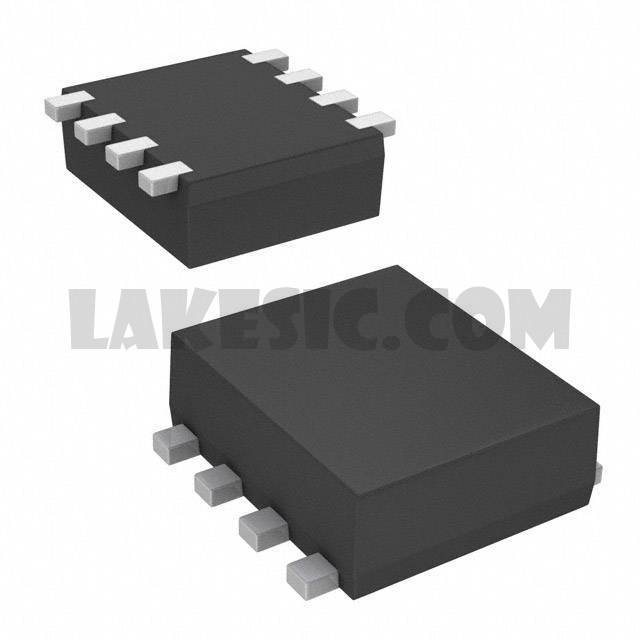

Package / Case8-SMD, Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 24V 8A 1W Surface Mount WMini8-F1

To learn about the specification of FC8V22040L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FC8V22040L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FC8V22040L.
We are offering FC8V22040L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FC8V22040L - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FC8V22040L
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	24V
Current - Continuous Drain (Id) @ 25°C	8A
Rds On (Max) @ Id, Vgs	15mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	-
Power - Max	1W
Operating Temperature	-40°C ~ 85°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SMD, Flat Lead
Supplier Device Package	WMini8-F1
Base Part Number	FC8V2204
