FCP130N60

Part NumberFCP130N60

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 600V 28A TO220

DatasheetFCP130N60

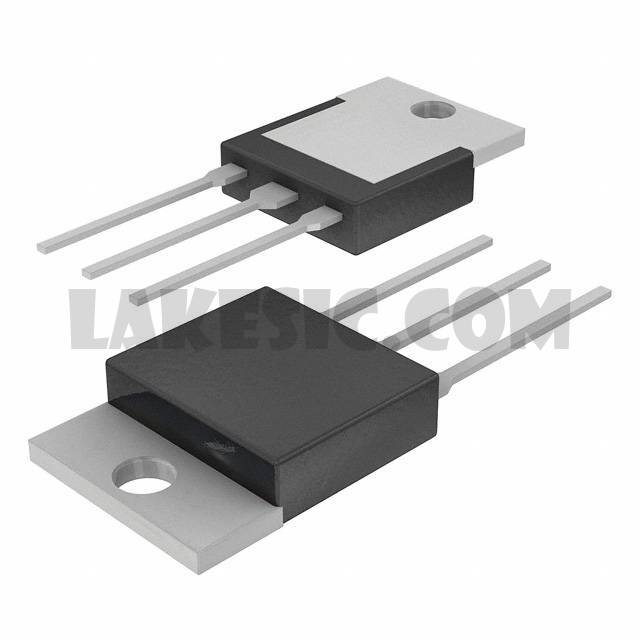

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 28A (Tc) 278W (Tc) Through Hole TO-220-3

To learn about the specification of FCP130N60, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FCP130N60 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FCP130N60.
We are offering FCP130N60 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FCP130N60 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

FCP130N60

Standard Package

800

Manufacturer

ON Semiconductor

Series

SuperFET® II

Packaging

Tube

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

600V

Current - Continuous Drain (Id) @ 25°C

28A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

130mOhm @ 14A, 10V

Vgs(th) (Max) @ Id

3.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

70nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

3590pF @ 380V

FET Feature

Power Dissipation (Max)

278W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

TO-220-3

Package / Case

TO-220-3
