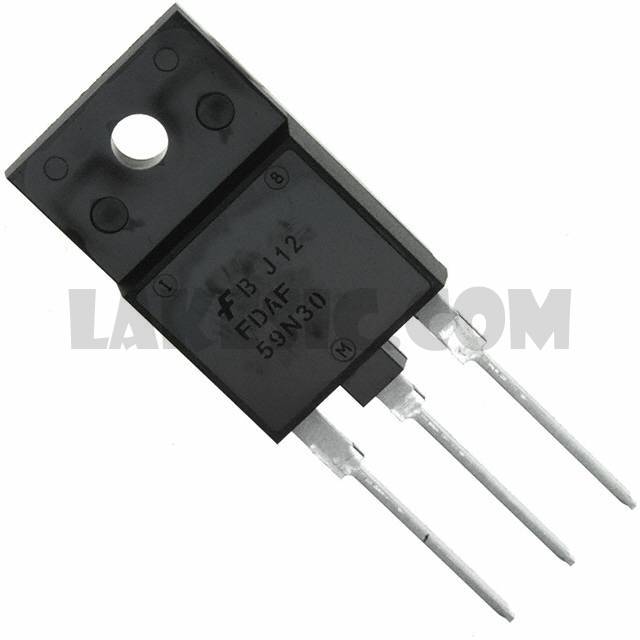

FDAF59N30

Part NumberFDAF59N30

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 300V 34A TO-3PF

DatasheetFDAF59N30

Package / CaseTO-3P-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 300V 34A (Tc) 161W (Tc) Through Hole TO-3PF

To learn about the specification of FDAF59N30, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDAF59N30 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDAF59N30.
We are offering FDAF59N30 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDAF59N30 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

FDAF59N30

Standard Package

Manufacturer

ON Semiconductor

Series

UniFET™

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

300V

Current - Continuous Drain (Id) @ 25°C

34A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

56mOhm @ 17A, 10V

Vgs(th) (Max) @ Id

5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

100nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

4670pF @ 25V

FET Feature

Power Dissipation (Max)

161W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

TO-3PF

Package / Case

TO-3P-3 Full Pack
