FDB8444TS


FDB8444TS

Part NumberFDB8444TS

Manufacturer

Description

Datasheet

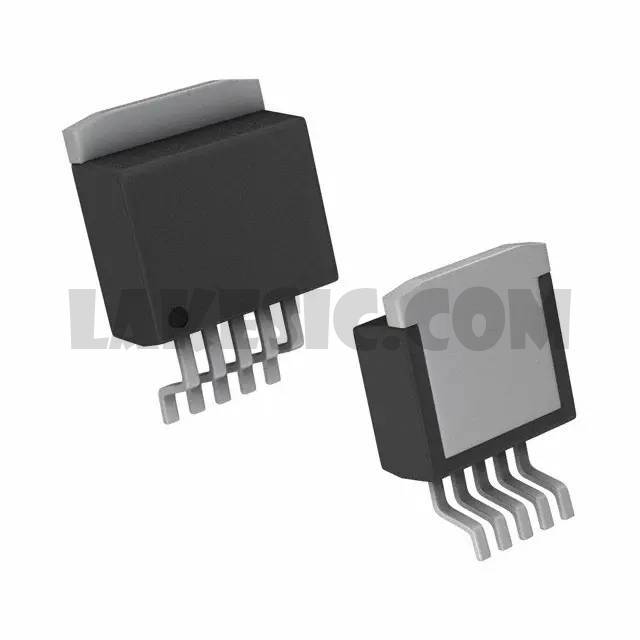

Package / CaseTO-263-5, D²Pak (4 Leads + Tab), TO-263BB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

FDB8444TS - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package800
ManufacturerON Semiconductor
SeriesPowerTrench®
PackagingTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40V
Current - Continuous Drain (Id) @ 25°C20A (Ta), 70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs5mOhm @ 70A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs338nC @ 20V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds8410pF @ 25V
FET Feature-
Power Dissipation (Max)181W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-263-5
Package / CaseTO-263-5, D²Pak (4 Leads + Tab), TO-263BB
