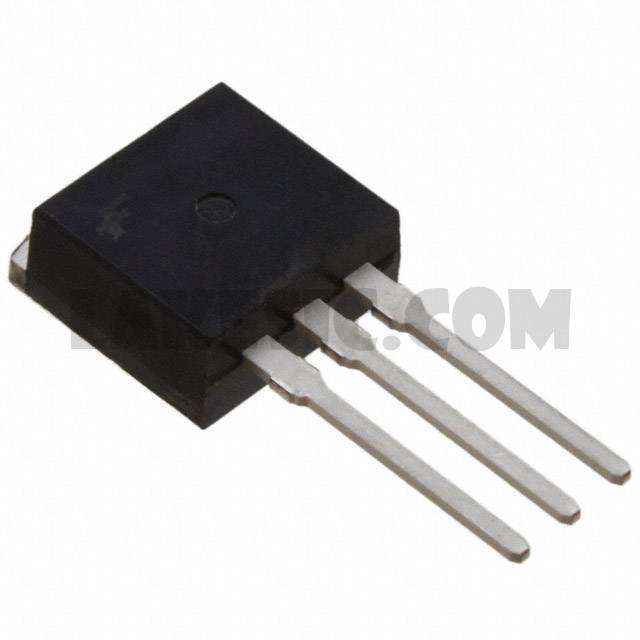

FDI030N06

FDI030N06

Part NumberFDI030N06

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 60V 120A I2PAK

DatasheetFDI030N06

Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 120A (Tc) 231W (Tc) Through Hole I2PAK (TO-262)

To learn about the specification of FDI030N06, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDI030N06 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDI030N06.
We are offering FDI030N06 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDI030N06 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDI030N06
Standard Package	1000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.2mOhm @ 75A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	151nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	9815pF @ 25V
FET Feature	-
Power Dissipation (Max)	231W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I2PAK (TO-262)
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
