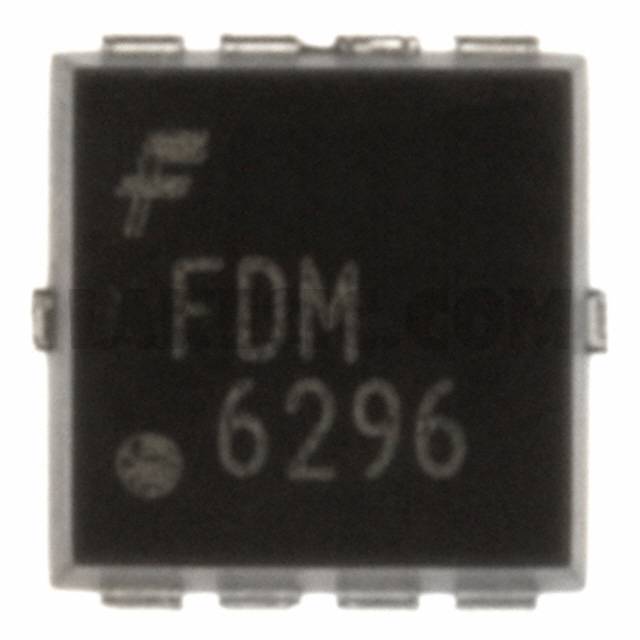

FDM6296

Part NumberFDM6296

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 30V 11.5A POWER33

DatasheetFDM6296

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 11.5A (Ta) 2.1W (Ta) Surface Mount 8-Power33 (3x3)

To learn about the specification of FDM6296, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDM6296 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDM6296.
We are offering FDM6296 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDM6296 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

FDM6296

Standard Package

Manufacturer

ON Semiconductor

Series

PowerTrench®

Packaging

Cut Tape (CT)

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

30V

Current - Continuous Drain (Id) @ 25°C

11.5A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V

Rds On (Max) @ Id, Vgs

10.5mOhm @ 11.5A, 10V

Vgs(th) (Max) @ Id

3V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

17nC @ 5V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

2005pF @ 15V

FET Feature

Power Dissipation (Max)

2.1W (Ta)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

8-Power33 (3x3)

Package / Case

8-PowerVDFN
