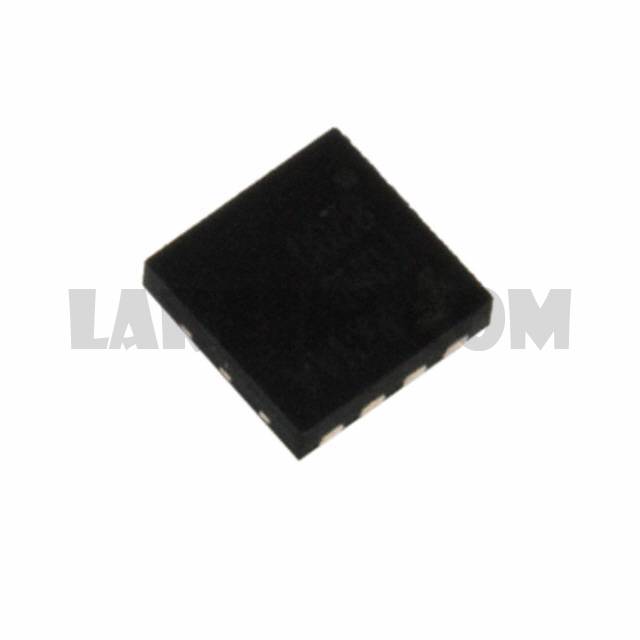

FDMC8200

FDMC8200

Part NumberFDMC8200

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 30V 8A/12A POWER33

DatasheetFDMC8200

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 30V 8A, 12A 700mW, 900mW Surface Mount 8-Power33 (3x3)

To learn about the specification of FDMC8200, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMC8200 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMC8200.
We are offering FDMC8200 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMC8200 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FDMC8200
Standard Package	3000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	8A, 12A
Rds On (Max) @ Id, Vgs	20mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	660pF @ 15V
Power - Max	700mW, 900mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-Power33 (3x3)
