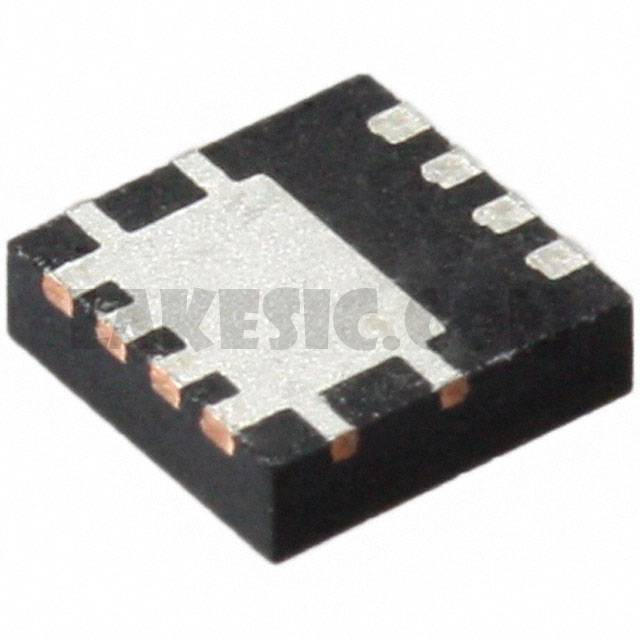

FDMC8321LDC

FDMC8321LDC

Part NumberFDMC8321LDC

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 40V 27A POWER33

DatasheetFDMC8321LDC

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 27A (Ta), 108A (Tc) 2.9W (Ta), 56W (Tc) Surface Mount Dual Cool ™ 33

To learn about the specification of FDMC8321LDC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMC8321LDC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMC8321LDC.
We are offering FDMC8321LDC for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMC8321LDC - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDMC8321LDC
Standard Package	3000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	27A (Ta), 108A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.5mOhm @ 27A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	60nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3965pF @ 20V
FET Feature	-
Power Dissipation (Max)	2.9W (Ta), 56W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Dual Cool ™ 33
Package / Case	8-PowerTDFN
