FDMD8240L

Part NumberFDMD8240L

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 40V 23A

DatasheetFDMD8240L

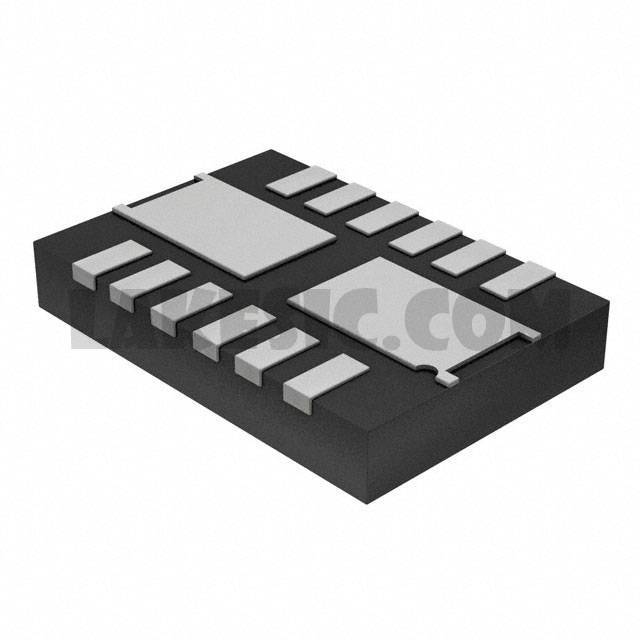

Package / Case12-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 40V 23A 2.1W Surface Mount 12-Power3.3x5

To learn about the specification of FDMD8240L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMD8240L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMD8240L.
We are offering FDMD8240L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMD8240L - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FDMD8240L
Standard Package	3000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	23A
Rds On (Max) @ Id, Vgs	2.6mOhm @ 23A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	56nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	4230pF @ 20V
Power - Max	2.1W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	12-PowerWDFN
Supplier Device Package	12-Power3.3x5
