FDMD8530

Part NumberFDMD8530

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 30V 35A

DatasheetFDMD8530

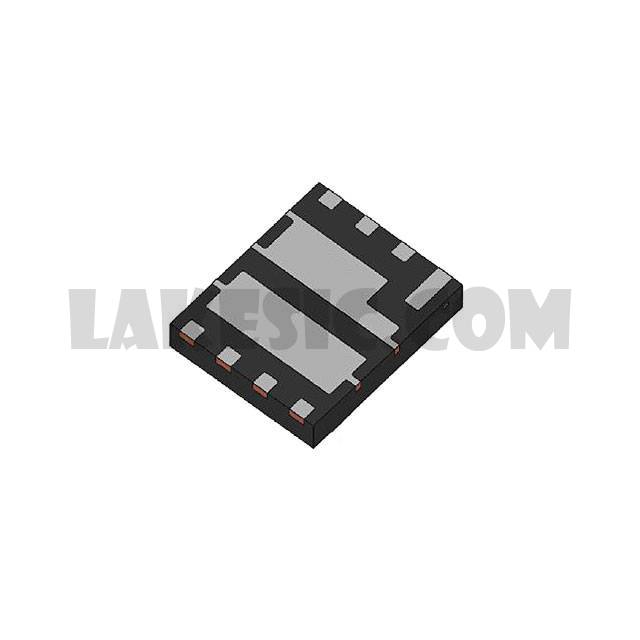

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 30V 35A 2.2W Surface Mount Power56

To learn about the specification of FDMD8530, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMD8530 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMD8530.
We are offering FDMD8530 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMD8530 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

FDMD8530

Standard Package

3000

Manufacturer

ON Semiconductor

Series

PowerTrench®

Packaging

Tape & Reel (TR)

Part Status

Active

FET Type

2 N-Channel (Dual)

FET Feature

Standard

Drain to Source Voltage (Vdss)

30V

Current - Continuous Drain (Id) @ 25°C

35A

Rds On (Max) @ Id, Vgs

1.25mOhm @ 35A, 10V

Vgs(th) (Max) @ Id

3V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

149nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds

10395pF @ 15V

Power - Max

2.2W

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Package / Case

8-PowerWDFN

Supplier Device Package

Power56
