FDMJ1023PZ

Part NumberFDMJ1023PZ

ManufacturerON Semiconductor

DescriptionMOSFET 2P-CH 20V 2.9A SC75

DatasheetFDMJ1023PZ

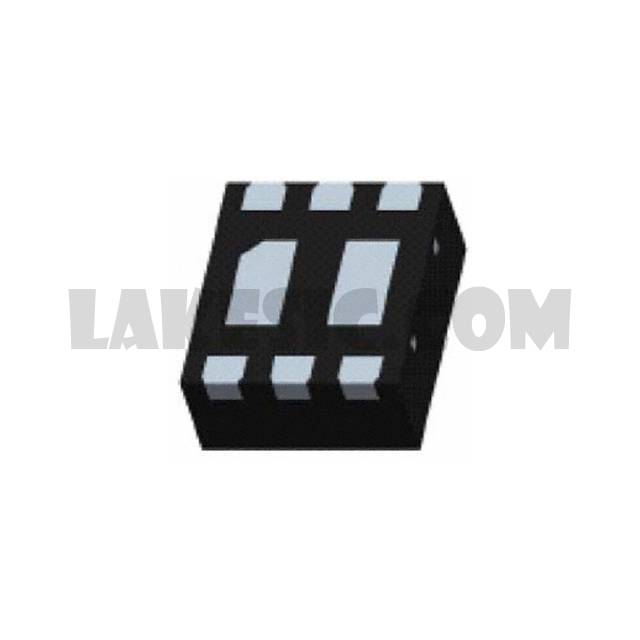

Package / Case6-WFDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 P-Channel (Dual) 20V 2.9A 700mW Surface Mount SC-75, MicroFET

To learn about the specification of FDMJ1023PZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMJ1023PZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMJ1023PZ.
We are offering FDMJ1023PZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMJ1023PZ - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

FDMJ1023PZ

Standard Package

3000

Manufacturer

ON Semiconductor

Series

PowerTrench®

Packaging

Tape & Reel (TR)

Part Status

Obsolete

FET Type

2 P-Channel (Dual)

FET Feature

Logic Level Gate

Drain to Source Voltage (Vdss)

20V

Current - Continuous Drain (Id) @ 25°C

2.9A

Rds On (Max) @ Id, Vgs

112mOhm @ 2.9A, 4.5V

Vgs(th) (Max) @ Id

1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

6.5nC @ 4.5V

Input Capacitance (Ciss) (Max) @ Vds

400pF @ 10V

Power - Max

700mW

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Package / Case

6-WFDFN Exposed Pad

Supplier Device Package

SC-75, MicroFET
