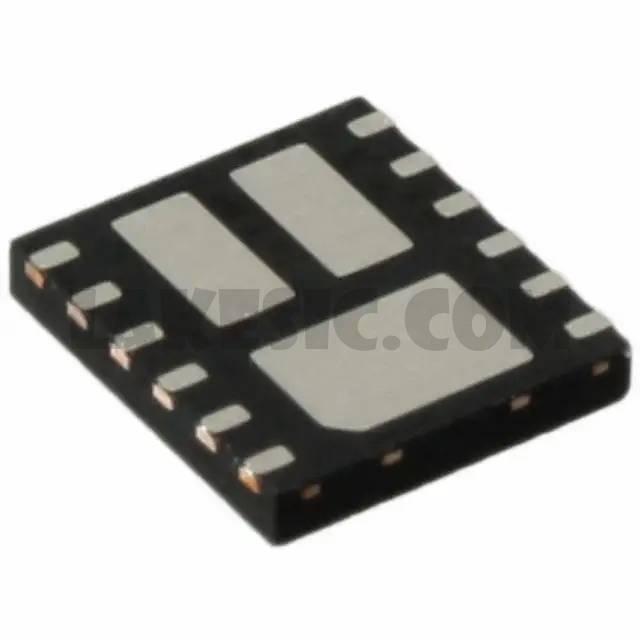

FDMQ86530L

Part NumberFDMQ86530L

ManufacturerON Semiconductor

DescriptionMOSFET 4N-CH 60V 8A MLP4.5X5

DatasheetFDMQ86530L

Package / Case12-WDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 4 N-Channel (H-Bridge) 60V 8A 1.9W Surface Mount 12-MLP (5x4.5)

To learn about the specification of FDMQ86530L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMQ86530L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMQ86530L.
We are offering FDMQ86530L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMQ86530L - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

FDMQ86530L

Standard Package

Manufacturer

ON Semiconductor

Series

GreenBridge™ PowerTrench®

Packaging

Cut Tape (CT)

Part Status

Active

FET Type

4 N-Channel (H-Bridge)

FET Feature

Logic Level Gate

Drain to Source Voltage (Vdss)

60V

Current - Continuous Drain (Id) @ 25°C

Rds On (Max) @ Id, Vgs

17.5mOhm @ 8A, 10V

Vgs(th) (Max) @ Id

3V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

33nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds

2295pF @ 30V

Power - Max

1.9W

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Package / Case

12-WDFN Exposed Pad

Supplier Device Package

12-MLP (5x4.5)
