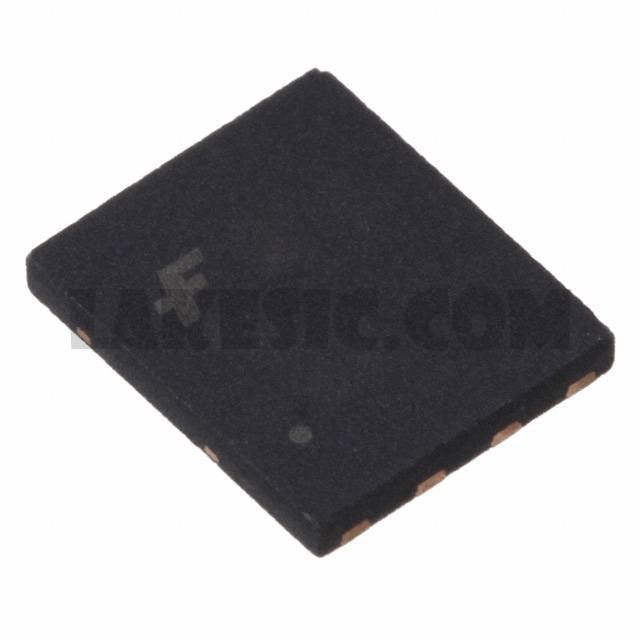

FDMS2672

FDMS2672

Part NumberFDMS2672

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 200V 3.7A POWER56

DatasheetFDMS2672

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 200V 3.7A (Ta), 20A (Tc) 2.5W (Ta), 78W (Tc) Surface Mount 8-MLP (5x6), Power56

To learn about the specification of FDMS2672, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMS2672 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMS2672.
We are offering FDMS2672 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMS2672 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDMS2672
Standard Package	3000
Manufacturer	ON Semiconductor
Series	UltraFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200V
Current - Continuous Drain (Id) @ 25°C	3.7A (Ta), 20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	77mOhm @ 3.7A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	42nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2315pF @ 100V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 78W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-MLP (5x6), Power56
Package / Case	8-PowerWDFN
