FDMS7620S

FDMS7620S

Part NumberFDMS7620S

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 30V POWER56

DatasheetFDMS7620S

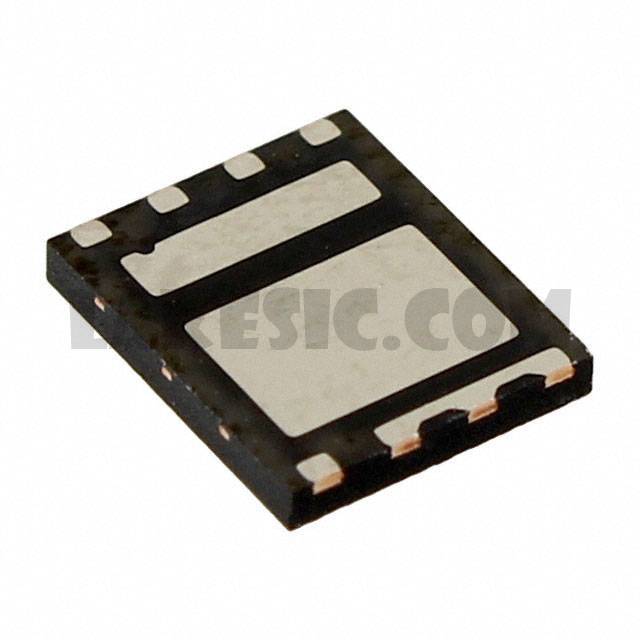

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 30V 10.1A, 12.4A 1W Surface Mount Power56

To learn about the specification of FDMS7620S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMS7620S with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMS7620S.
We are offering FDMS7620S for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMS7620S - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FDMS7620S
Standard Package	1
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	10.1A, 12.4A
Rds On (Max) @ Id, Vgs	20mOhm @ 10.1A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	11nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	608pF @ 15V
Power - Max	1W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	Power56
