FDMT80040DC

FDMT80040DC

Part NumberFDMT80040DC

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 40V 420A 8PQFN

DatasheetFDMT80040DC

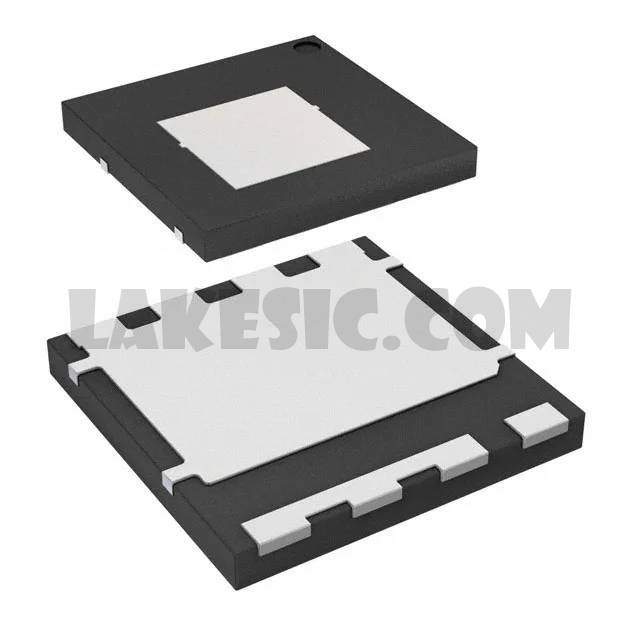

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 420A (Tc) 156W (Tc) Surface Mount 8-PQFN (8x8)

To learn about the specification of FDMT80040DC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMT80040DC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMT80040DC.
We are offering FDMT80040DC for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMT80040DC - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDMT80040DC
Standard Package	3000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	420A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	0.56mOhm @ 64A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	338nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	26110pF @ 20V
FET Feature	-
Power Dissipation (Max)	156W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (8x8)
Package / Case	8-PowerVDFN
