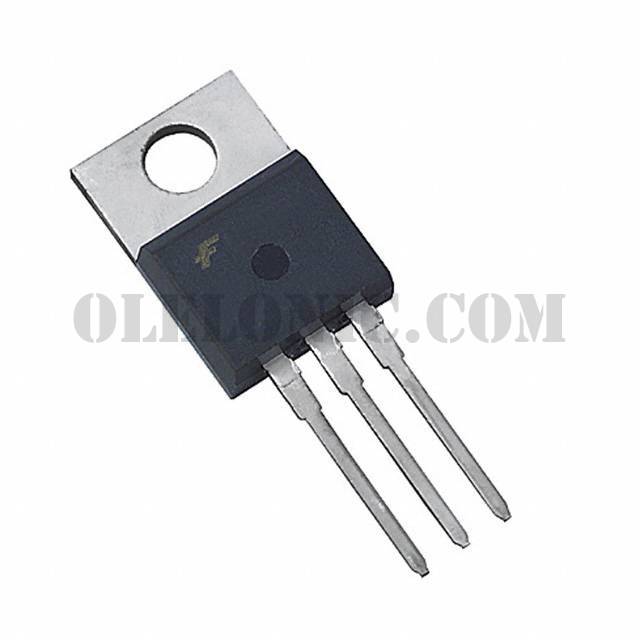

FDP036N10A

FDP036N10A

Part NumberFDP036N10A

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 100V TO-220AB-3

DatasheetFDP036N10A

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 120A (Tc) 333W (Tc) Through Hole TO-220-3

To learn about the specification of FDP036N10A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDP036N10A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDP036N10A.
We are offering FDP036N10A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDP036N10A - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDP036N10A
Standard Package	800
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.6mOhm @ 75A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	116nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7295pF @ 25V
FET Feature	-
Power Dissipation (Max)	333W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-3
Package / Case	TO-220-3
