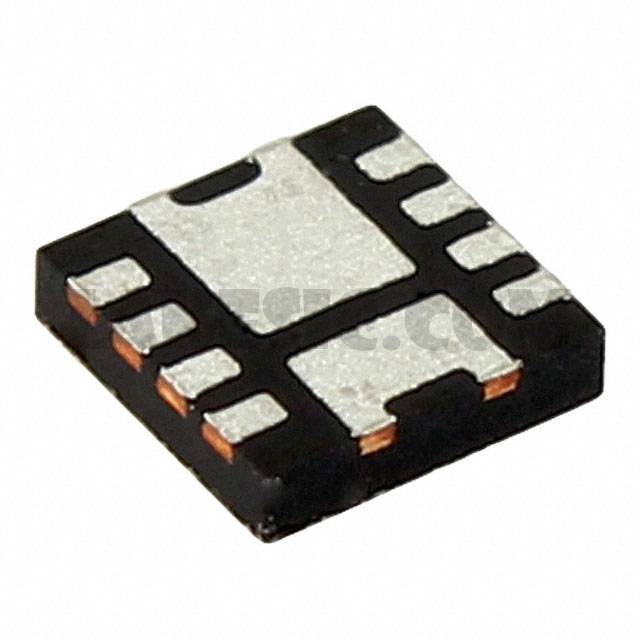

FDPC8012S

FDPC8012S

Part NumberFDPC8012S

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 25V 13A/26A PWR CLP

DatasheetFDPC8012S

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Asymmetrical 25V 13A, 26A 800mW, 900mW Surface Mount Powerclip-33

To learn about the specification of FDPC8012S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDPC8012S with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDPC8012S.
We are offering FDPC8012S for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDPC8012S - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FDPC8012S
Standard Package	1
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual) Asymmetrical
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25°C	13A, 26A
Rds On (Max) @ Id, Vgs	7mOhm @ 12A, 4.5V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1075pF @ 13V
Power - Max	800mW, 900mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	Powerclip-33
