FDY3000NZ

FDY3000NZ

Part NumberFDY3000NZ

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 20V 0.6A SC89

DatasheetFDY3000NZ

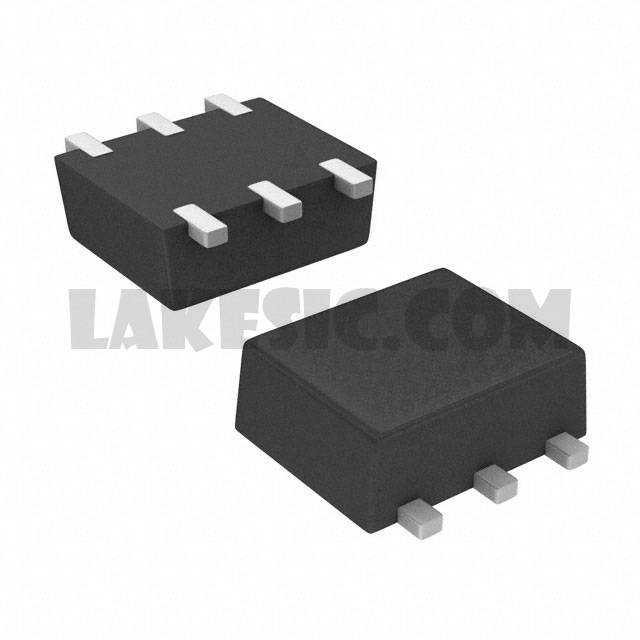

Package / CaseSOT-563, SOT-666

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 20V 600mA 446mW Surface Mount SOT-563F

To learn about the specification of FDY3000NZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDY3000NZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDY3000NZ.
We are offering FDY3000NZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDY3000NZ - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FDY3000NZ
Standard Package	3000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	600mA
Rds On (Max) @ Id, Vgs	700mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id	1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	60pF @ 10V
Power - Max	446mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Supplier Device Package	SOT-563F
