FDZ1323NZ

Part NumberFDZ1323NZ

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 20V 10A 6WLCSP

DatasheetFDZ1323NZ

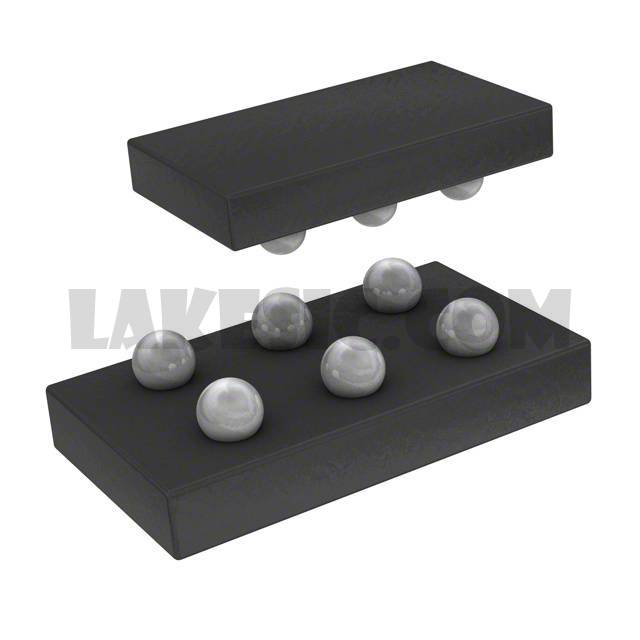

Package / Case6-XFBGA, WLCSP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Common Drain 20V 10A 500mW Surface Mount 6-WLCSP (1.3x2.3)

To learn about the specification of FDZ1323NZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDZ1323NZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDZ1323NZ.
We are offering FDZ1323NZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDZ1323NZ - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

FDZ1323NZ

Standard Package

Manufacturer

ON Semiconductor

Series

PowerTrench®

Packaging

Cut Tape (CT)

Part Status

Active

FET Type

2 N-Channel (Dual) Common Drain

FET Feature

Logic Level Gate

Drain to Source Voltage (Vdss)

20V

Current - Continuous Drain (Id) @ 25°C

10A

Rds On (Max) @ Id, Vgs

13mOhm @ 1A, 4.5V

Vgs(th) (Max) @ Id

1.2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

24nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds

2055pF @ 10V

Power - Max

500mW

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Package / Case

6-XFBGA, WLCSP

Supplier Device Package

6-WLCSP (1.3x2.3)
