FDZ191P

FDZ191P

Part NumberFDZ191P

ManufacturerON Semiconductor

DescriptionMOSFET P-CH 20V 3A 6WLCSP

DatasheetFDZ191P

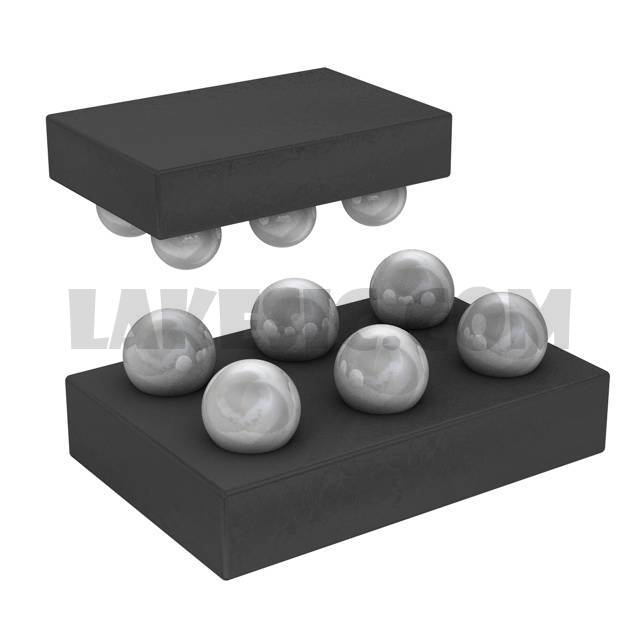

Package / Case6-UFBGA, WLCSP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 3A (Ta) 1.9W (Ta) Surface Mount 6-WLCSP (1.0x1.5)

To learn about the specification of FDZ191P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDZ191P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDZ191P.
We are offering FDZ191P for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDZ191P - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDZ191P
Standard Package	5000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	85mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13nC @ 10V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	800pF @ 10V
FET Feature	-
Power Dissipation (Max)	1.9W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WLCSP (1.0x1.5)
Package / Case	6-UFBGA, WLCSP
