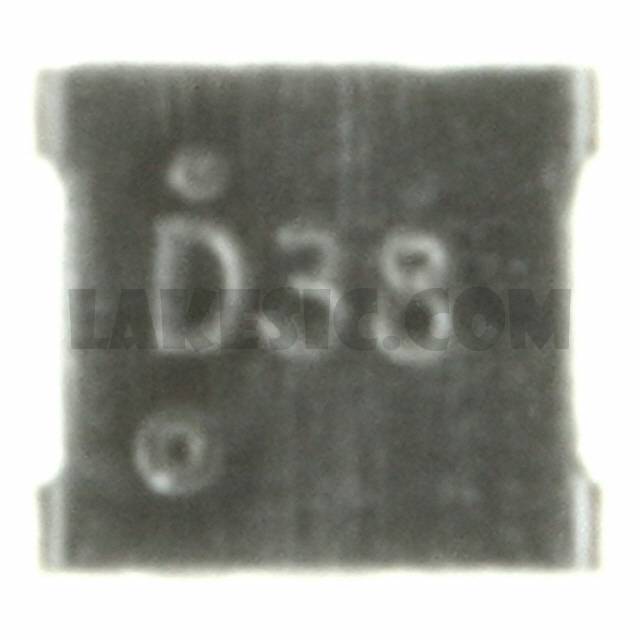

FDZ291P

Part NumberFDZ291P

ManufacturerON Semiconductor

DescriptionMOSFET P-CH 20V 4.6A BGA

DatasheetFDZ291P

Package / Case9-VFBGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 4.6A (Ta) 1.7W (Ta) Surface Mount 9-BGA (1.5x1.6)

To learn about the specification of FDZ291P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDZ291P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDZ291P.
We are offering FDZ291P for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDZ291P - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

FDZ291P

Standard Package

10000

Manufacturer

ON Semiconductor

Series

PowerTrench®

Packaging

Tape & Reel (TR)

Part Status

Obsolete

FET Type

P-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

20V

Current - Continuous Drain (Id) @ 25°C

4.6A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

1.5V, 4.5V

Rds On (Max) @ Id, Vgs

40mOhm @ 4.6A, 4.5V

Vgs(th) (Max) @ Id

1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

13nC @ 4.5V

Vgs (Max)

±8V

Input Capacitance (Ciss) (Max) @ Vds

1010pF @ 10V

FET Feature

Power Dissipation (Max)

1.7W (Ta)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

9-BGA (1.5x1.6)

Package / Case

9-VFBGA
