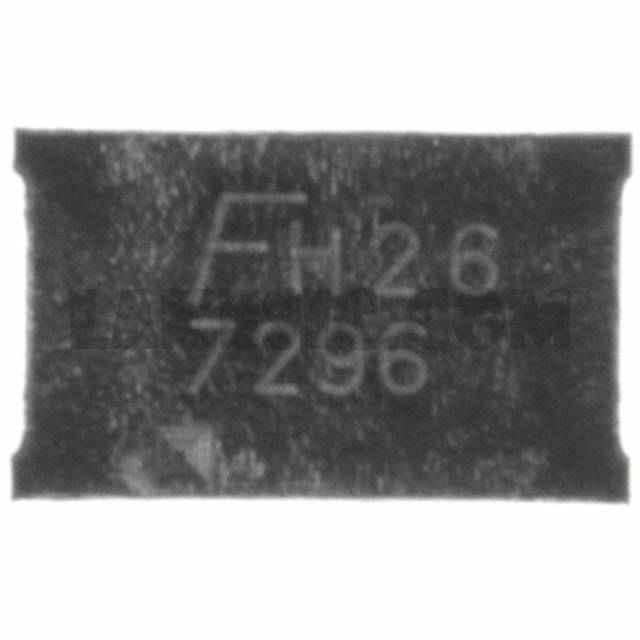

FDZ7296

Part NumberFDZ7296

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 30V 11A BGA

DatasheetFDZ7296

Package / Case18-WFBGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 11A (Ta) 2.1W (Ta) Surface Mount 18-BGA (2.5x4)

To learn about the specification of FDZ7296, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDZ7296 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDZ7296.
We are offering FDZ7296 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDZ7296 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

FDZ7296

Standard Package

Manufacturer

ON Semiconductor

Series

PowerTrench®

Packaging

Cut Tape (CT)

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

30V

Current - Continuous Drain (Id) @ 25°C

11A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V

Rds On (Max) @ Id, Vgs

8.5mOhm @ 11A, 10V

Vgs(th) (Max) @ Id

3V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

31nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

1520pF @ 15V

FET Feature

Power Dissipation (Max)

2.1W (Ta)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

18-BGA (2.5x4)

Package / Case

18-WFBGA
