Categories	Capacitors / Electric Double Layer Capacitors (EDLC), Supercapacitors
Datasheet	FG Series Datasheet
Standard Package	240
Manufacturer	KEMET
Series	FG
Packaging	Bulk
Part Status	Active
Capacitance	1F
Tolerance	-20%, +80%
Voltage - Rated	5.5V
ESR (Equivalent Series Resistance)	65Ohm @ 1kHz
Lifetime @ Temp.	-
Termination	PC Pins
Mounting Type	Through Hole
Package / Case	Radial, Can
Lead Spacing	0.200" (5.08mm)
Size / Dimension	0.650" Dia (16.50mm)
Height - Seated (Max)	0.748" (19.00mm)
Operating Temperature	-25°C ~ 70°C

FG24X7T2E333KNT06	TDK Corporation, 0.033µF ±10% 250V Ceramic Capacitor X7T Radial, FG	View
FG28C0G2A391JNT06	TDK Corporation, 390pF ±5% 100V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG18C0G1H152JNT06	TDK Corporation, 1500pF ±5% 50V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG28X7R1H222KNT06	TDK Corporation, 2200pF ±10% 50V Ceramic Capacitor X7R Radial, FG	View
FG26X5R1H685KRT06	TDK Corporation, 6.8µF ±10% 50V Ceramic Capacitor X5R Radial, FG	View
FG26C0G2J103JNT06	TDK Corporation, 10000pF ±5% 630V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG26C0G2J272JNT00	TDK Corporation, 2700pF ±5% 630V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG20C0G2W333JNT06	TDK Corporation, 0.033µF ±5% 450V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG18X7R1E154KNT06	TDK Corporation, 0.15µF ±10% 25V Ceramic Capacitor X7R Radial, FG	View
FG16C0G2A223JNT06	TDK Corporation, 0.022µF ±5% 100V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG28C0G2E331JNT06	TDK Corporation, 330pF ±5% 250V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG11X7R1C226MRT06	TDK Corporation, 22µF ±20% 16V Ceramic Capacitor X7R Radial, FG	View

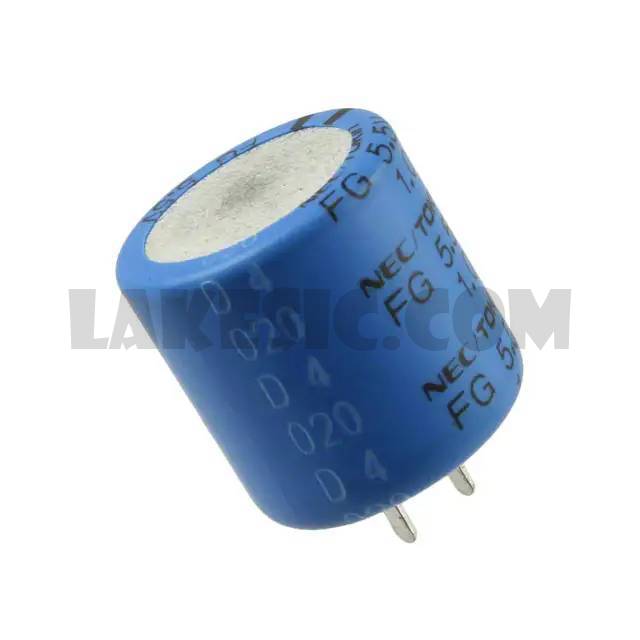

FG0H105ZF
