Categories	Capacitors / Electric Double Layer Capacitors (EDLC), Supercapacitors
Datasheet	FG Series Datasheet
Standard Package	90
Manufacturer	KEMET
Series	FGH
Packaging	Bulk
Part Status	Active
Capacitance	1F
Tolerance	-20%, +80%
Voltage - Rated	5.5V
ESR (Equivalent Series Resistance)	35Ohm @ 1kHz
Lifetime @ Temp.	-
Termination	PC Pins
Mounting Type	Through Hole
Package / Case	Radial, Can
Lead Spacing	0.300" (7.62mm)
Size / Dimension	0.846" Dia (21.50mm)
Height - Seated (Max)	0.374" (9.50mm)
Operating Temperature	-25°C ~ 70°C

FG28X7R1H683KNT06	TDK Corporation, 0.068µF ±10% 50V Ceramic Capacitor X7R Radial, FG	View
FG26C0G1H683JNT06	TDK Corporation, 0.068µF ±5% 50V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG23C0G2E154JRT06	TDK Corporation, 0.15µF ±5% 250V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG26C0G2J681JNT06	TDK Corporation, 680pF ±5% 630V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG11C0G2A473JNT06	TDK Corporation, 0.047µF ±5% 100V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG28C0G1H682JNT06	TDK Corporation, 6800pF ±5% 50V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG24C0G2W121JNT06	TDK Corporation, 120pF ±5% 450V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG28C0G1H392JNT06	TDK Corporation, 3900pF ±5% 50V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG24C0G2A562JNT00	TDK Corporation, 5600pF ±5% 100V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG28X7R1H103KNT06	TDK Corporation, 10000pF ±10% 50V Ceramic Capacitor X7R Radial, FG	View
FG18C0G2A391JNT06	TDK Corporation, 390pF ±5% 100V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG28C0G1H222JNT06	TDK Corporation, 2200pF ±5% 50V Ceramic Capacitor C0G, NP0 Radial, FG	View

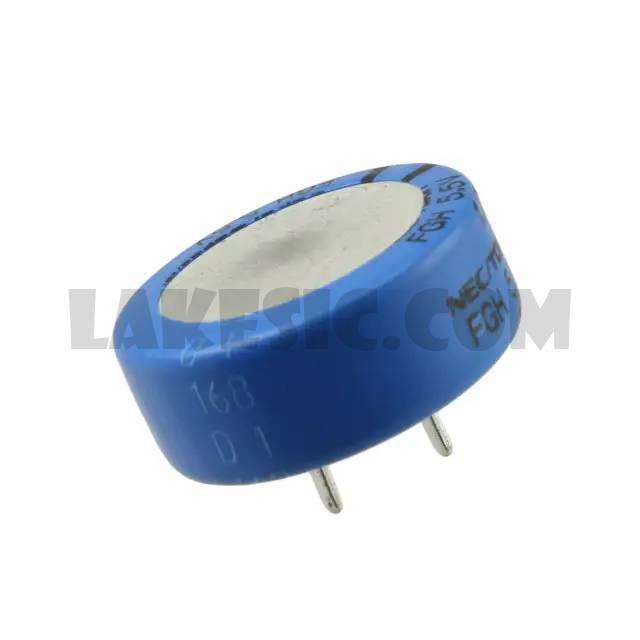

FGH0H105ZF

Part NumberFGH0H105ZF
