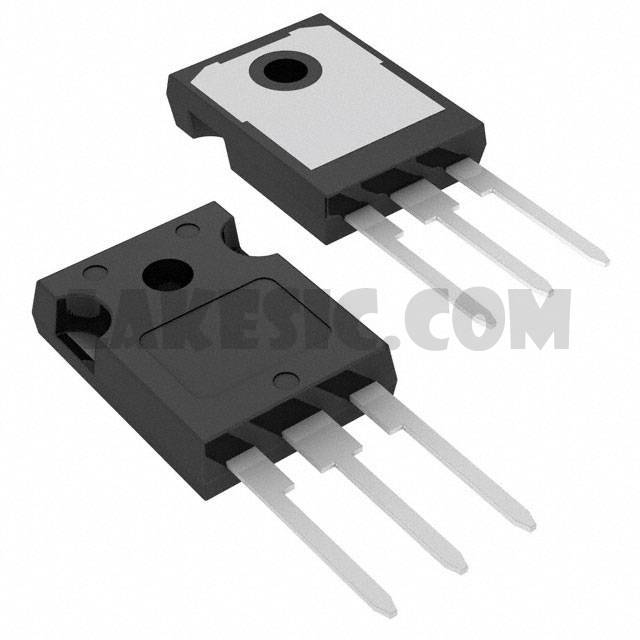

FGH12040WD-F155

FGH12040WD-F155

Part NumberFGH12040WD-F155

ManufacturerON Semiconductor

Description1200V 40A FS2 TRENCH IGBT

DatasheetFGH12040WD

Package / CaseTO-247-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Trench Field Stop 1200V 80A 428W Through Hole TO-247-3

To learn about the specification of FGH12040WD-F155, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FGH12040WD-F155 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FGH12040WD-F155.
We are offering FGH12040WD-F155 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FGH12040WD-F155 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	FGH12040WD
Standard Package	450
Manufacturer	ON Semiconductor
Series	-
Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	80A
Current - Collector Pulsed (Icm)	100A
Vce(on) (Max) @ Vge, Ic	2.9V @ 15V, 40A
Power - Max	428W
Switching Energy	4.1mJ (on), 1mJ (off)
Input Type	Standard
Gate Charge	226nC
Td (on/off) @ 25°C	45ns/560ns
Test Condition	600V, 40A, 23Ohm, 15V
Reverse Recovery Time (trr)	71ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247-3
