Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	FGH75T65SQDNL4
Standard Package	450
Manufacturer	ON Semiconductor
Series	-
Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	650V
Current - Collector (Ic) (Max)	200A
Current - Collector Pulsed (Icm)	200A
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 75A
Power - Max	375W
Switching Energy	1.25mJ (on), 1.26mJ (off)
Input Type	Standard
Gate Charge	152nC
Td (on/off) @ 25°C	44ns/208ns
Test Condition	400V, 75A, 10Ohm, 15V
Reverse Recovery Time (trr)	134ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole

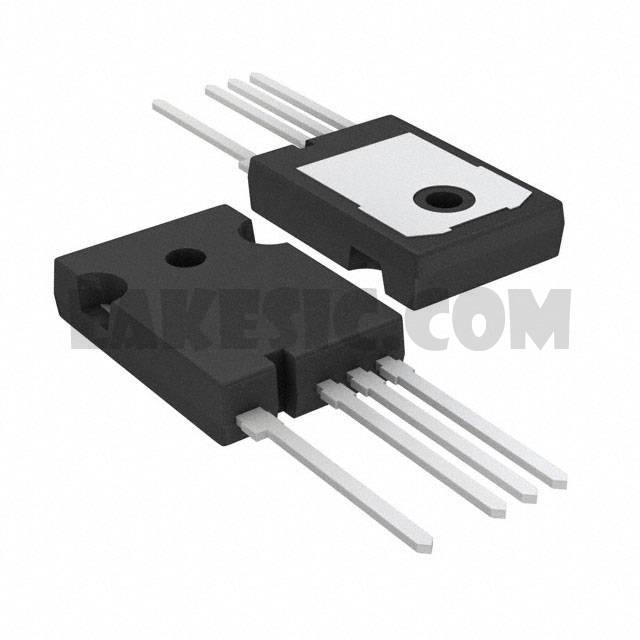

Package / Case	TO-247-4
Supplier Device Package	TO-247-4L
