FGL60N100BNTD
FGL60N100BNTD

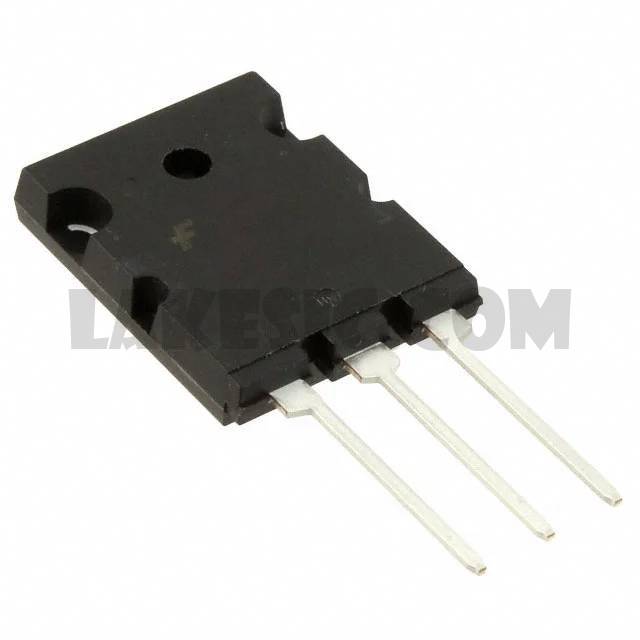

Part Number FGL60N100BNTD Description IGBT 1000V 60A 180W TO264 Package / Case TO-264-3, TO-264AAUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT NPT and Trench 1000V 60A 180W Through Hole TO-264-3
To learn about the specification of FGL60N100BNTD, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FGL60N100BNTD with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FGL60N100BNTD.
We are offering FGL60N100BNTD for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
FGL60N100BNTD - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet FGL60N100BNTD Standard Package 375 Manufacturer ON Semiconductor Series - Packaging Tube Part Status Not For New Designs IGBT Type NPT and Trench Voltage - Collector Emitter Breakdown (Max) 1000V Current - Collector (Ic) (Max) 60A Current - Collector Pulsed (Icm) 120A Vce(on) (Max) @ Vge, Ic 2.9V @ 15V, 60A Power - Max 180W Switching Energy - Input Type Standard Gate Charge 275nC Td (on/off) @ 25°C 140ns/630ns Test Condition 600V, 60A, 51Ohm, 15V Reverse Recovery Time (trr) 1.2µs Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole Package / Case TO-264-3, TO-264AA Supplier Device Package TO-264-3
