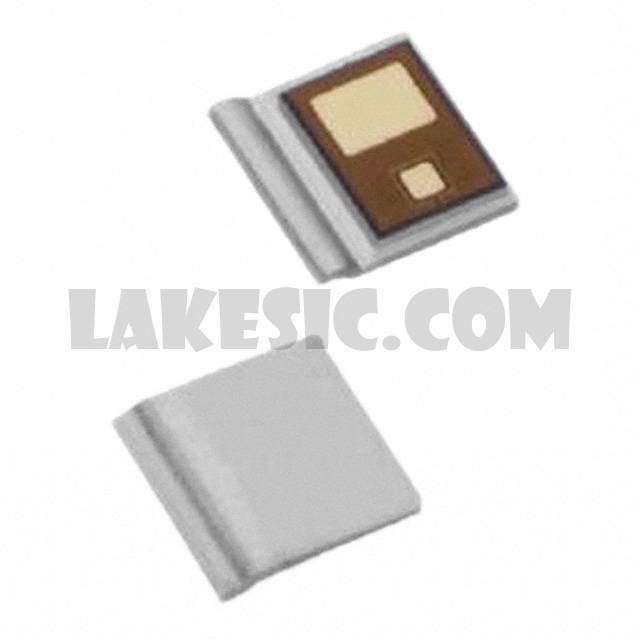

FJ3P02100L

FJ3P02100L

Part NumberFJ3P02100L

ManufacturerPanasonic Electronic Components

DescriptionMOSFET P CH 20V 4.4A PMCP

DatasheetFJ3P02100L

Package / Case3-SMD, Non-Standard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 4.4A (Ta) Surface Mount 3-PMCP

To learn about the specification of FJ3P02100L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FJ3P02100L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FJ3P02100L.
We are offering FJ3P02100L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FJ3P02100L - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FJ3P02100L
Standard Package	7000
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	4.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2V, 4.5V
Rds On (Max) @ Id, Vgs	12.5mOhm @ 3.7A, 4.5V
Vgs(th) (Max) @ Id	1.05V @ 1mA
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	3000pF @ 10V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	3-PMCP
Package / Case	3-SMD, Non-Standard
