FJI5603DTU

FJI5603DTU

Part NumberFJI5603DTU

ManufacturerON Semiconductor

DescriptionTRANS NPN 800V 3A I2PAK

DatasheetFJI5603D

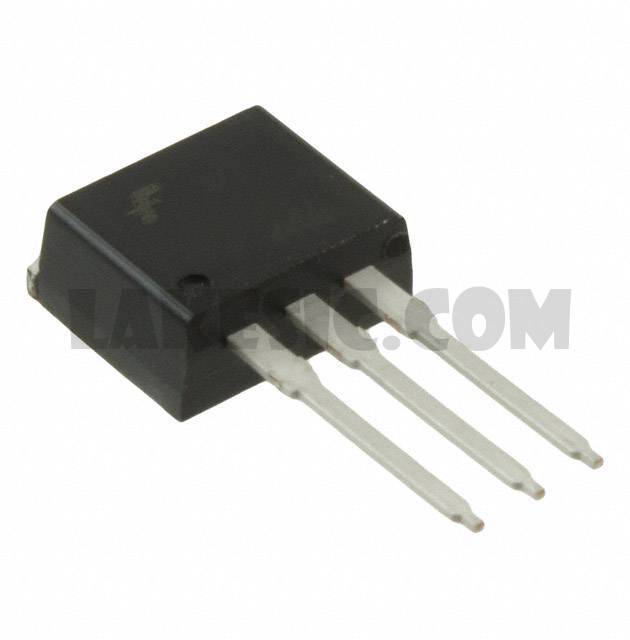

Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 800V 3A 5MHz 100W Through Hole I2PAK (TO-262)

To learn about the specification of FJI5603DTU, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FJI5603DTU with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FJI5603DTU.
We are offering FJI5603DTU for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FJI5603DTU - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	FJI5603D
Standard Package	1000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tube
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	3A
Voltage - Collector Emitter Breakdown (Max)	800V
Vce Saturation (Max) @ Ib, Ic	2.5V @ 200mA, 1A
Current - Collector Cutoff (Max)	100µA
DC Current Gain (hFE) (Min) @ Ic, Vce	20 @ 400mA, 3V
Power - Max	100W
Frequency - Transition	5MHz
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package	I2PAK (TO-262)
