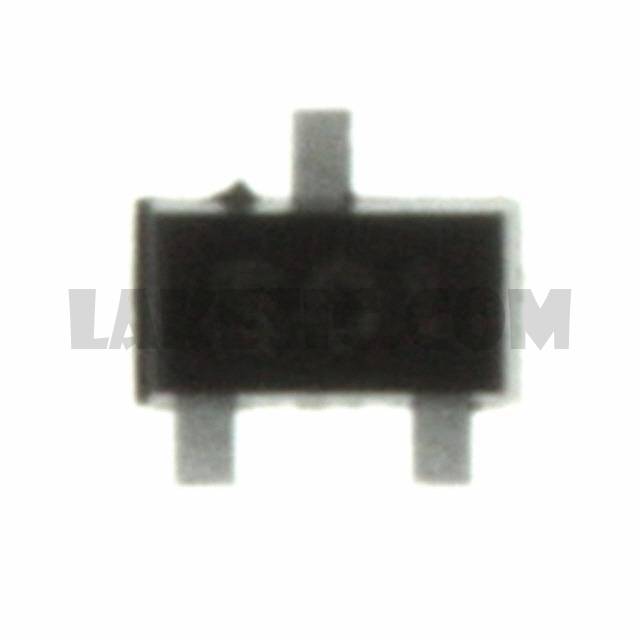

FJY3001R

Part NumberFJY3001R

ManufacturerON Semiconductor

DescriptionTRANS PREBIAS NPN 200MW SOT523F

DatasheetFJY3001R

Package / CaseSC-89, SOT-490

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionPre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50V 100mA 250MHz 200mW Surface Mount SOT-523F

To learn about the specification of FJY3001R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FJY3001R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FJY3001R.
We are offering FJY3001R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FJY3001R - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single, Pre-Biased

Datasheet

FJY3001R

Standard Package

Manufacturer

ON Semiconductor

Series

Packaging

Cut Tape (CT)

Part Status

Obsolete

Transistor Type

NPN - Pre-Biased

Current - Collector (Ic) (Max)

100mA

Voltage - Collector Emitter Breakdown (Max)

50V

Resistor - Base (R1)

4.7 kOhms

Resistor - Emitter Base (R2)

4.7 kOhms

DC Current Gain (hFE) (Min) @ Ic, Vce

22 @ 10mA, 5V

Vce Saturation (Max) @ Ib, Ic

300mV @ 500µA, 10mA

Current - Collector Cutoff (Max)

100nA (ICBO)

Frequency - Transition

250MHz

Power - Max

200mW

Mounting Type

Surface Mount

Package / Case

SC-89, SOT-490

Supplier Device Package

SOT-523F

Base Part Number

FJY3001
