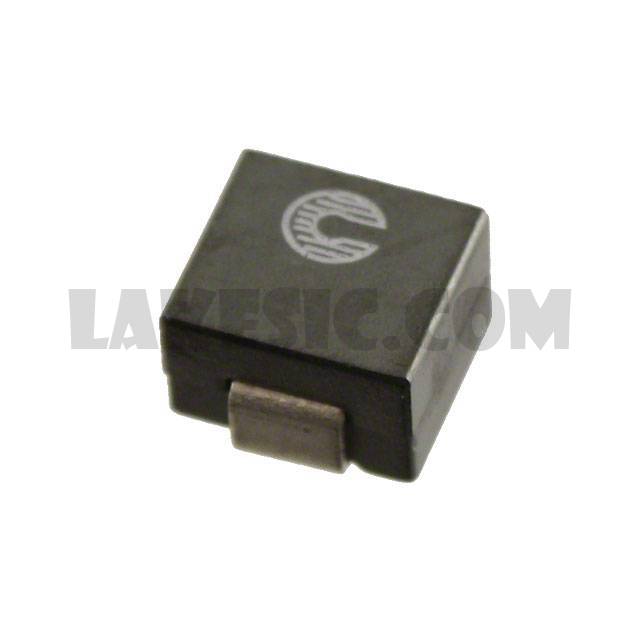

FP0805R1-R20-R

Part NumberFP0805R1-R20-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 200NH 65A 0.17 MOHM

DatasheetFP0805 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description200nH Unshielded Wirewound Inductor 65A 0.17mOhm Nonstandard

To learn about the specification of FP0805R1-R20-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FP0805R1-R20-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FP0805R1-R20-R.
We are offering FP0805R1-R20-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FP0805R1-R20-R - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	FP0805 Series
Standard Package	1
Manufacturer	Eaton - Electronics Division
Series	FLAT-PAC, FP0805
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	200nH
Tolerance	±10%
Current Rating (Amps)	65A
Current - Saturation	20A
Shielding	Unshielded
DC Resistance (DCR)	0.17mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.300" L x 0.295" W (7.62mm x 7.49mm)
Height - Seated (Max)	0.195" (4.96mm)
