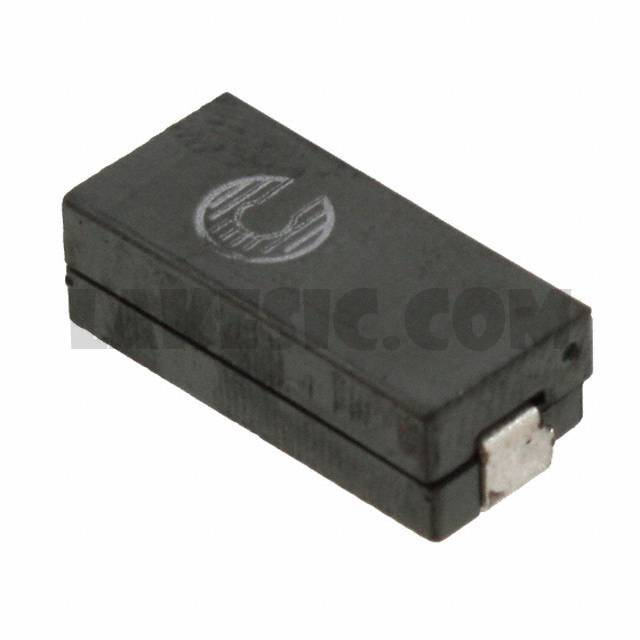

FP1505R1-R12-R

Part NumberFP1505R1-R12-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 120NH 53A 0.47 MOHM

DatasheetFP1505 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description120nH Unshielded Wirewound Inductor 53A 0.47mOhm Nonstandard

To learn about the specification of FP1505R1-R12-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FP1505R1-R12-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FP1505R1-R12-R.
We are offering FP1505R1-R12-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FP1505R1-R12-R - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	FP1505 Series
Standard Package	744
Manufacturer	Eaton - Electronics Division
Series	FLAT-PAC, FP1505
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	120nH
Tolerance	±10%
Current Rating (Amps)	53A
Current - Saturation	87A
Shielding	Unshielded
DC Resistance (DCR)	0.47mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.579" L x 0.264" W (14.70mm x 6.70mm)
Height - Seated (Max)	0.197" (5.00mm)
