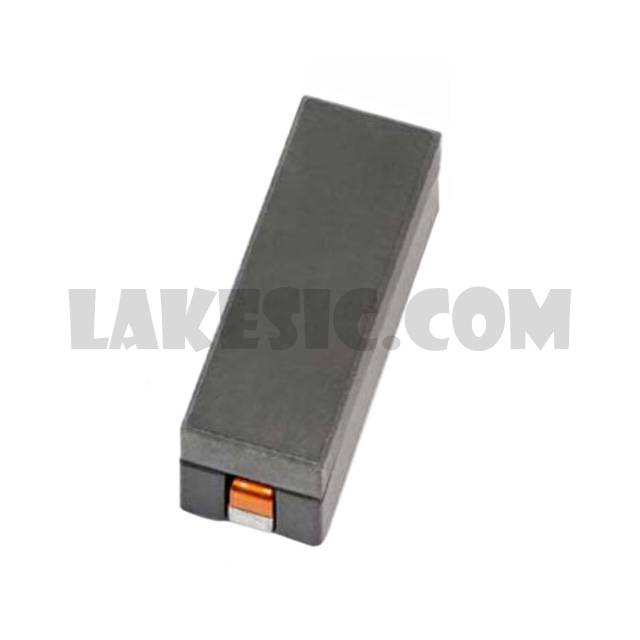

FP2207R1-R230-R


FP2207R1-R230-R

Part NumberFP2207R1-R230-R

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

FP2207R1-R230-R - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package500
ManufacturerEaton - Electronics Division
SeriesFP2207
PackagingTape & Reel (TR)
Part StatusActive
Type-
Material - CoreFerrite
Inductance230nH
Tolerance±10%
Current Rating (Amps)50A
Current - Saturation72A
ShieldingShielded
DC Resistance (DCR)470mOhm
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test1MHz
Features-
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Height - Seated (Max)0.285" (7.25mm)
