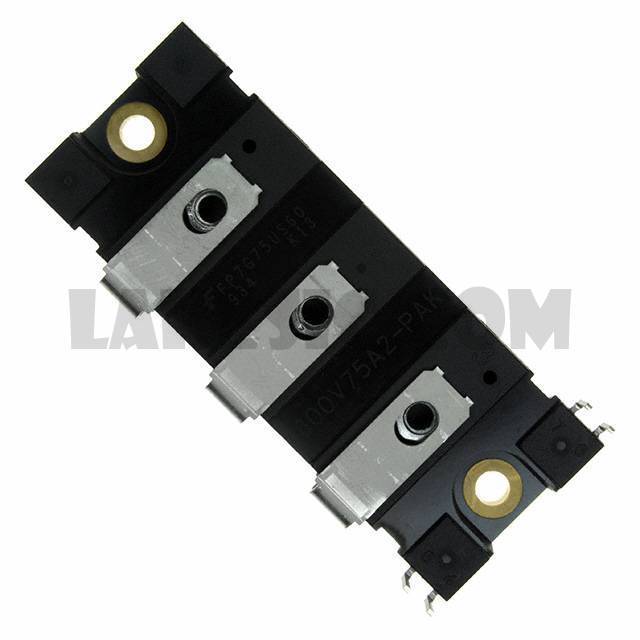

FP7G75US60

Part NumberFP7G75US60

ManufacturerON Semiconductor

DescriptionMODULE IGBT 600V 75A EPM7

DatasheetFP7G75US60

Package / CaseEPM7

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Half Bridge 600V 75A 310W Chassis Mount EPM7

To learn about the specification of FP7G75US60, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FP7G75US60 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FP7G75US60.
We are offering FP7G75US60 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FP7G75US60 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

FP7G75US60

Standard Package

Manufacturer

ON Semiconductor

Series

Power-SPM™

Part Status

Obsolete

IGBT Type

Configuration

Half Bridge

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

75A

Power - Max

310W

Vce(on) (Max) @ Vge, Ic

2.8V @ 15V, 75A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

4.515nF @ 30V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 125°C (TJ)

Mounting Type

Chassis Mount

Package / Case

EPM7

Supplier Device Package

EPM7
