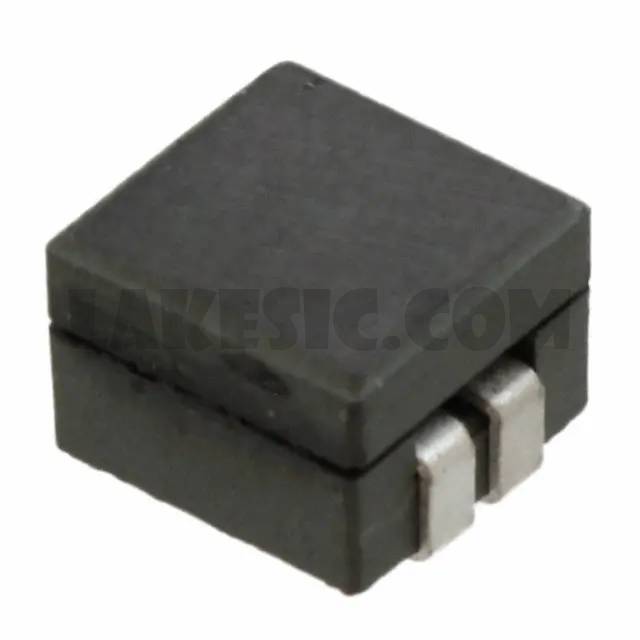

FPT705-300-R

Part NumberFPT705-300-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 300NH 13A 0.65 MOHM

DatasheetFPT705 Series

Package / Case2727 (6868 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description300nH Unshielded Wirewound Inductor 13A 0.65mOhm 2727 (6868 Metric)

To learn about the specification of FPT705-300-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FPT705-300-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FPT705-300-R.
We are offering FPT705-300-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FPT705-300-R - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	FPT705 Series
Standard Package	1
Manufacturer	Eaton - Electronics Division
Series	FLAT-PAC, FPT705
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	300nH
Tolerance	±12%
Current Rating (Amps)	13A
Current - Saturation	17A
Shielding	Unshielded
DC Resistance (DCR)	0.65mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	2727 (6868 Metric)
Supplier Device Package	-
Size / Dimension	0.295" L x 0.268" W (7.50mm x 6.80mm)
Height - Seated (Max)	0.211" (5.35mm)
