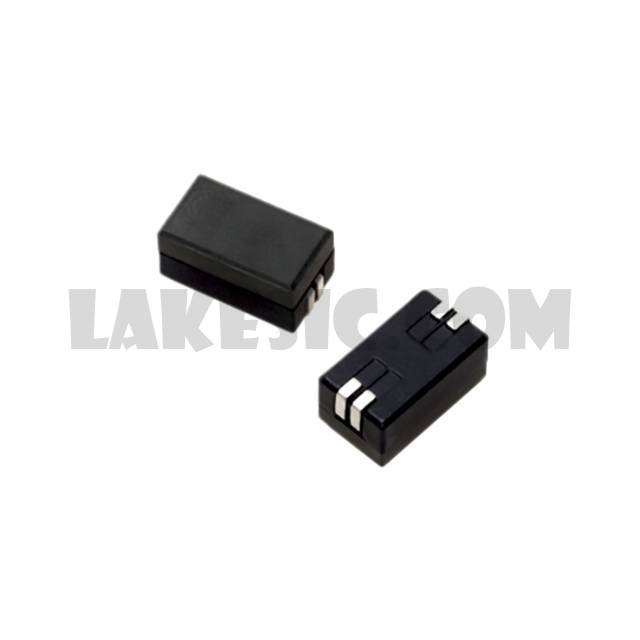

FPV1507-500-R

Part NumberFPV1507-500-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 500NH 25A 1.15 MOHM

DatasheetFPV1507 Series Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description500nH Shielded Wirewound Inductor 25A 1.15mOhm Nonstandard

To learn about the specification of FPV1507-500-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FPV1507-500-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FPV1507-500-R.
We are offering FPV1507-500-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FPV1507-500-R - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	FPV1507 Series Datasheet
Standard Package	600
Manufacturer	Eaton - Electronics Division
Series	FPV1507
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	500nH
Tolerance	±10%
Current Rating (Amps)	25A
Current - Saturation	40A
Shielding	Shielded
DC Resistance (DCR)	1.15mOhm
Q @ Freq	135 @ 1MHz
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	1MHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.575" L x 0.531" W (14.60mm x 13.50mm)
Height - Seated (Max)	0.272" (6.90mm)
