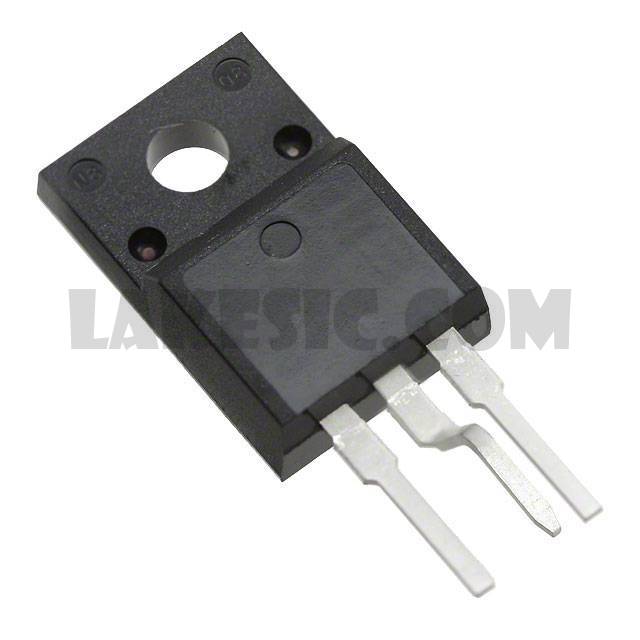

FQPF5N50CYDTU

FQPF5N50CYDTU

Part NumberFQPF5N50CYDTU

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 500V 5A TO-220F

DatasheetFQP5N50C, FQPF5N50C

Package / CaseTO-220-3 Full Pack, Formed Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 500V 5A (Tc) 38W (Tc) Through Hole TO-220F-3 (Y-Forming)

To learn about the specification of FQPF5N50CYDTU, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FQPF5N50CYDTU with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FQPF5N50CYDTU.
We are offering FQPF5N50CYDTU for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FQPF5N50CYDTU - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FQP5N50C, FQPF5N50C
Standard Package	800
Manufacturer	ON Semiconductor
Series	QFET®
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25°C	5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.4Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	24nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	625pF @ 25V
FET Feature	-
Power Dissipation (Max)	38W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220F-3 (Y-Forming)
Package / Case	TO-220-3 Full Pack, Formed Leads
