FQU5N60CTU

FQU5N60CTU

Part NumberFQU5N60CTU

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 600V 2.8A IPAK

DatasheetFQD5N60C, FQU5N60C

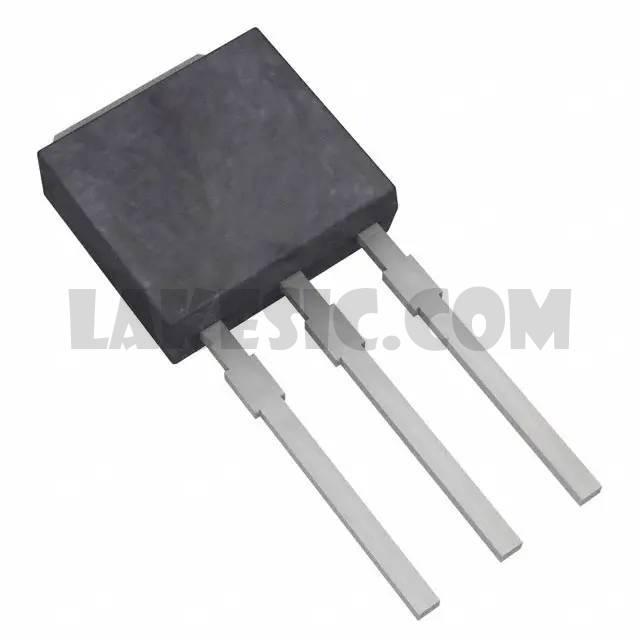

Package / CaseTO-251-3 Short Leads, IPak, TO-251AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 2.8A (Tc) 2.5W (Ta), 49W (Tc) Through Hole I-PAK

To learn about the specification of FQU5N60CTU, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FQU5N60CTU with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FQU5N60CTU.
We are offering FQU5N60CTU for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FQU5N60CTU - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FQD5N60C, FQU5N60C
Standard Package	5040
Manufacturer	ON Semiconductor
Series	QFET®
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	2.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.5Ohm @ 1.4A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	19nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	670pF @ 25V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 49W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I-PAK
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
