FSV15120V

FSV15120V

Part NumberFSV15120V

ManufacturerON Semiconductor

DescriptionDIODE SCHOTTKY 120V 15A TO277-3

DatasheetFSV15120V

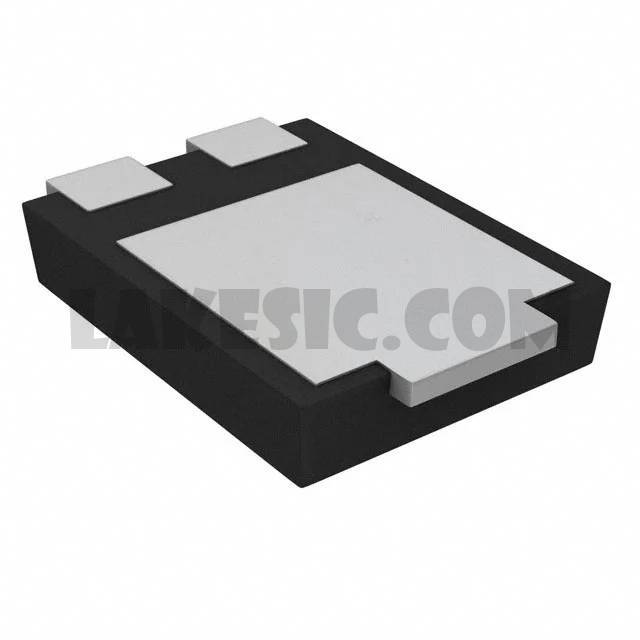

Package / CaseTO-277, 3-PowerDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 120V 15A Surface Mount TO-277-3

To learn about the specification of FSV15120V, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FSV15120V with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FSV15120V.
We are offering FSV15120V for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FSV15120V - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	FSV15120V
Standard Package	1
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	120V
Current - Average Rectified (Io)	15A
Voltage - Forward (Vf) (Max) @ If	790mV @ 15A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	35µA @ 120V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	TO-277, 3-PowerDFN
Supplier Device Package	TO-277-3
Operating Temperature - Junction	-55°C ~ 150°C
