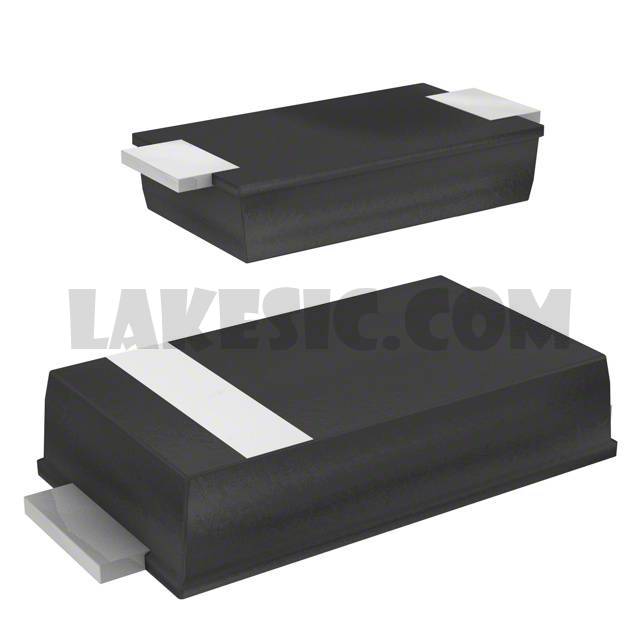

FSV530AF

FSV530AF

Part NumberFSV530AF

ManufacturerON Semiconductor

DescriptionDIODE SCHOTTKY 30V 5A SMAF

DatasheetFSV530AF

Package / CaseDO-214AD, SMAF

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 5A Surface Mount DO-214AD (SMAF)

To learn about the specification of FSV530AF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FSV530AF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FSV530AF.
We are offering FSV530AF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FSV530AF - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	FSV530AF
Standard Package	10000
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	5A
Voltage - Forward (Vf) (Max) @ If	540mV @ 5A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	15.72ns
Current - Reverse Leakage @ Vr	100µA @ 30V
Capacitance @ Vr, F	159pF @ 10V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-214AD, SMAF
Supplier Device Package	DO-214AD (SMAF)
Operating Temperature - Junction	-55°C ~ 150°C
