Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	GBU2504 - GBU2507
Standard Package	1000
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Tube
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	1kV
Current - Average Rectified (Io)	25A
Voltage - Forward (Vf) (Max) @ If	1.2V @ 25A
Current - Reverse Leakage @ Vr	10µA @ 1000V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	4-SIP, GBU
Supplier Device Package	GBU

GBU6B-E3/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 100V Through Hole GBU,	View
RS405GL-BP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 600V Through Hole RS-4L,	View
GBJ602-F	Diodes Incorporated, Bridge Rectifier Single Phase Standard 200V Through Hole GBJ,	View
KBU6G-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 400V Through Hole KBU,	View
GBU2510-G	Comchip Technology, Bridge Rectifier Single Phase Standard 1kV Through Hole GBU,	View
TS25P07G D2G	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1kV Through Hole TS-6P,	View
GBJ8005-F	Diodes Incorporated, Bridge Rectifier Single Phase Standard 50V Through Hole GBJ,	View
GBPC3508W	ON Semiconductor, Bridge Rectifier Single Phase Standard 800V Through Hole GBPC-W,	View
KBP206G	Diodes Incorporated, Bridge Rectifier Single Phase Standard 600V Through Hole KBP,	View
BR81	GeneSiC Semiconductor, Bridge Rectifier Single Phase Standard 100V Through Hole BR-8,	View
UR4KB80 C2G	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 800V Through Hole D3K,	View
GBPC5010W-G	Comchip Technology, Bridge Rectifier Single Phase Standard 1kV Through Hole GBPC-W,	View

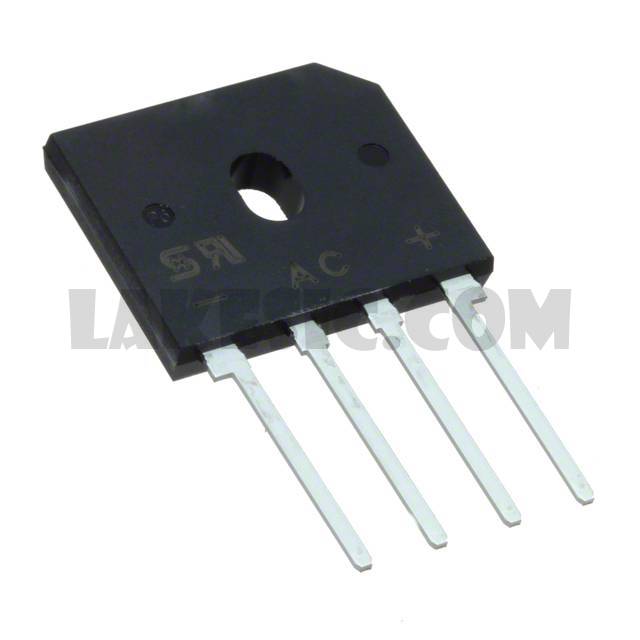

GBU2507 D2

Part NumberGBU2507 D2
