GDP12S060D

Part NumberGDP12S060D

ManufacturerGlobal Power Technologies Group

DescriptionDIODE SCHOTTKY 600V 12A TO263-2

DatasheetGDP12S060D

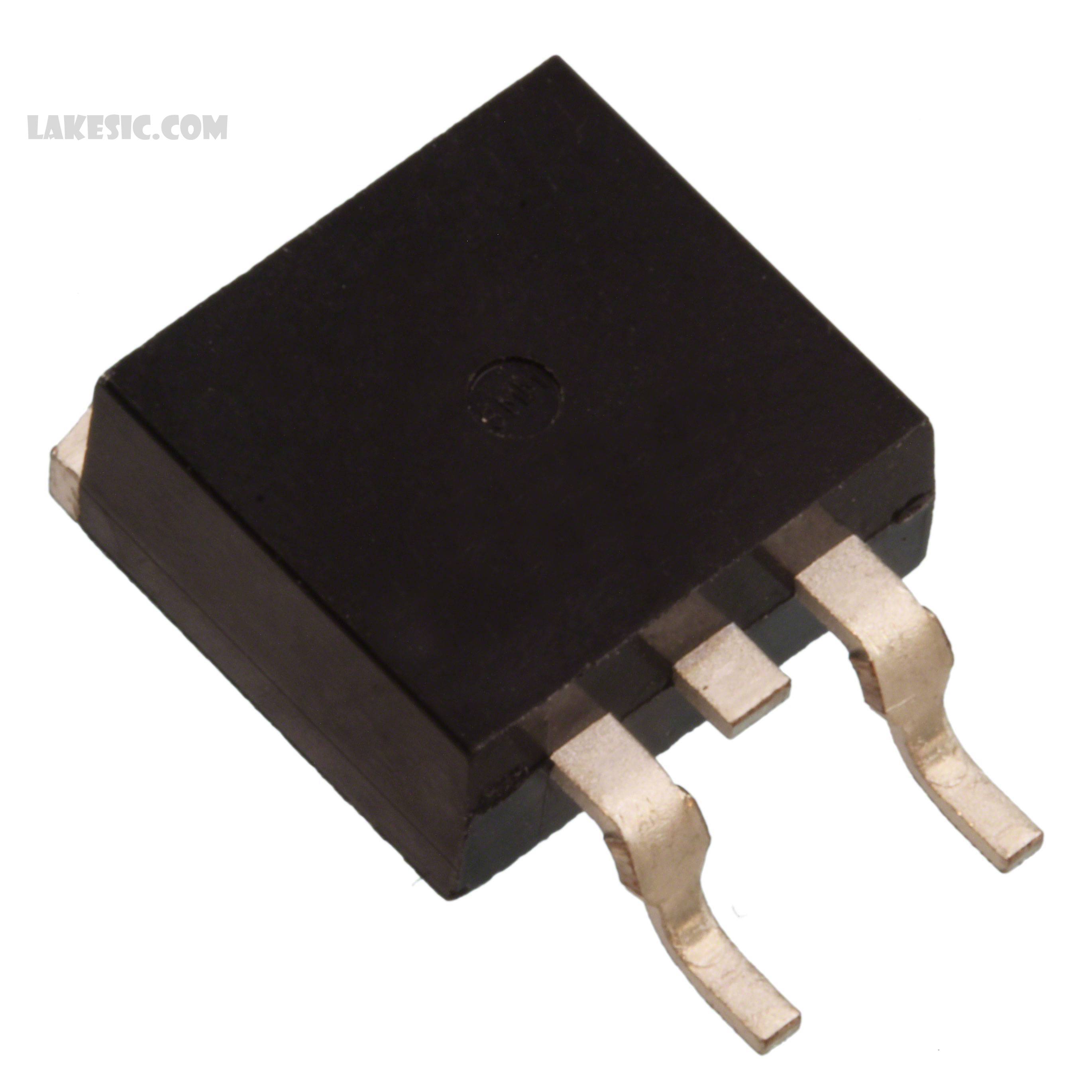

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Silicon Carbide Schottky 600V 12A (DC) Surface Mount TO-263-2

To learn about the specification of GDP12S060D, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add GDP12S060D with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of GDP12S060D.
We are offering GDP12S060D for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

GDP12S060D - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Single

Datasheet

GDP12S060D

Standard Package

Manufacturer

Global Power Technologies Group

Series

Amp+™

Packaging

Tube

Part Status

Obsolete

Diode Type

Silicon Carbide Schottky

Voltage - DC Reverse (Vr) (Max)

600V

Current - Average Rectified (Io)

12A (DC)

Voltage - Forward (Vf) (Max) @ If

1.7V @ 12A

Speed

No Recovery Time > 500mA (Io)

Reverse Recovery Time (trr)

0ns

Current - Reverse Leakage @ Vr

100µA @ 600V

Capacitance @ Vr, F

487pF @ 1V, 1MHz

Mounting Type

Surface Mount

Package / Case

TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Supplier Device Package

TO-263-2

Operating Temperature - Junction

-55°C ~ 135°C

All categories

GDP12S060D

Part NumberGDP12S060D

ManufacturerGlobal Power Technologies Group

DescriptionDIODE SCHOTTKY 600V 12A TO263-2

DatasheetGDP12S060D

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Silicon Carbide Schottky 600V 12A (DC) Surface Mount TO-263-2

GDP12S060D - Product Attributes

GDP12S060D - Tags
