Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	GF1A - GF1M
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1000V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.2V @ 1A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	2µs
Current - Reverse Leakage @ Vr	5µA @ 1000V
Capacitance @ Vr, F	15pF @ 4V, 1MHz
Mounting Type	Surface Mount

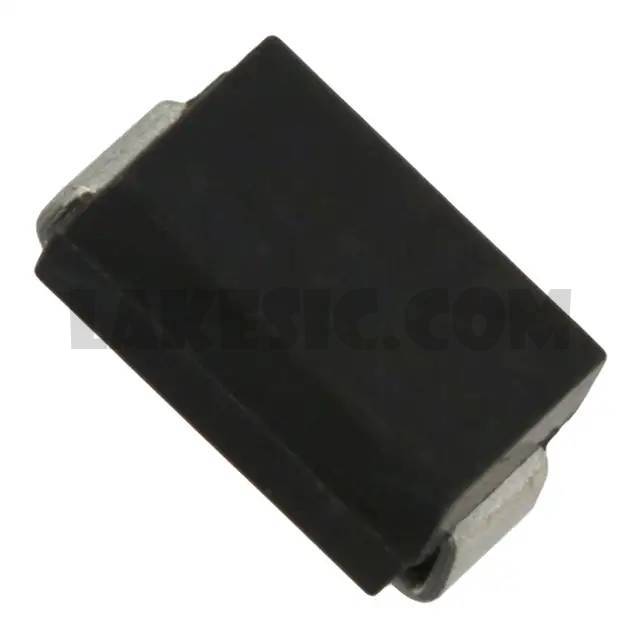

Package / Case	DO-214AC, SMA
Supplier Device Package	SMA (DO-214AC)
Operating Temperature - Junction	-65°C ~ 175°C
Base Part Number	GF1M
