GP1M005A050PH

Part NumberGP1M005A050PH

ManufacturerGlobal Power Technologies Group

DescriptionMOSFET N-CH 500V 4.5A IPAK

DatasheetGP1M005A050CH, PH

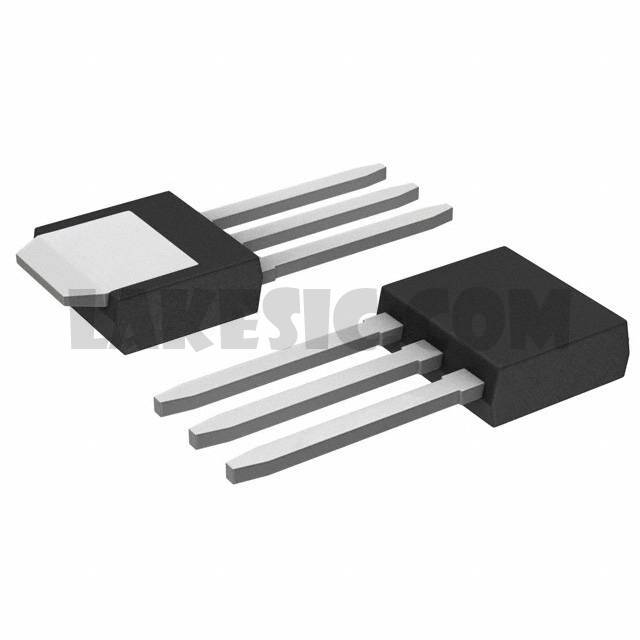

Package / CaseTO-251-3 Short Leads, IPak, TO-251AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 500V 4.5A (Tc) 92.5W (Tc) Through Hole I-PAK

To learn about the specification of GP1M005A050PH, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add GP1M005A050PH with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of GP1M005A050PH.
We are offering GP1M005A050PH for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

GP1M005A050PH - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

GP1M005A050CH, PH

Standard Package

7200

Manufacturer

Global Power Technologies Group

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

500V

Current - Continuous Drain (Id) @ 25°C

4.5A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

1.65Ohm @ 2.25A, 10V

Vgs(th) (Max) @ Id

4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

11nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

627pF @ 25V

FET Feature

Power Dissipation (Max)

92.5W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

I-PAK

Package / Case

TO-251-3 Short Leads, IPak, TO-251AA
