GP1M008A080H

Part NumberGP1M008A080H

ManufacturerGlobal Power Technologies Group

DescriptionMOSFET N-CH 800V 8A TO220

DatasheetGP1M008A080(F)H

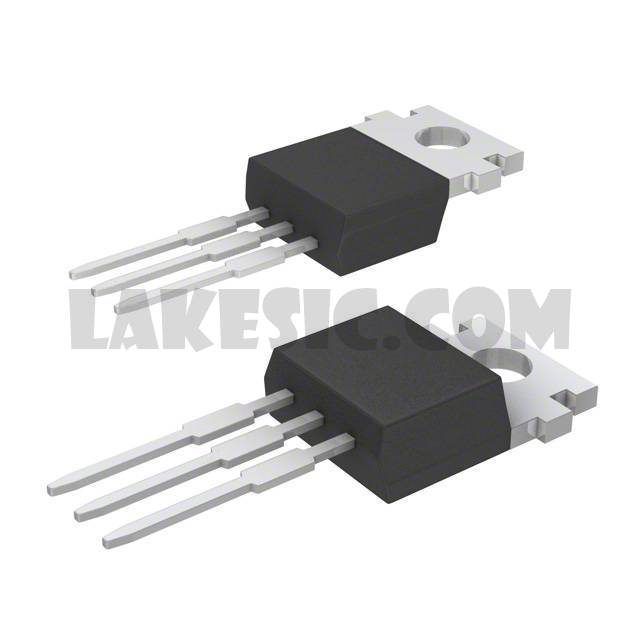

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 800V 8A (Tc) 250W (Tc) Through Hole TO-220

To learn about the specification of GP1M008A080H, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add GP1M008A080H with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of GP1M008A080H.
We are offering GP1M008A080H for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

GP1M008A080H - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

GP1M008A080(F)H

Standard Package

Manufacturer

Global Power Technologies Group

Series

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

800V

Current - Continuous Drain (Id) @ 25°C

8A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

1.4Ohm @ 4A, 10V

Vgs(th) (Max) @ Id

4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

46nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

1921pF @ 25V

FET Feature

Power Dissipation (Max)

250W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

TO-220

Package / Case

TO-220-3
