GP1M009A060FH

Part NumberGP1M009A060FH

ManufacturerGlobal Power Technologies Group

DescriptionMOSFET N-CH 600V 9A TO220F

DatasheetGP1M009A060(F)H

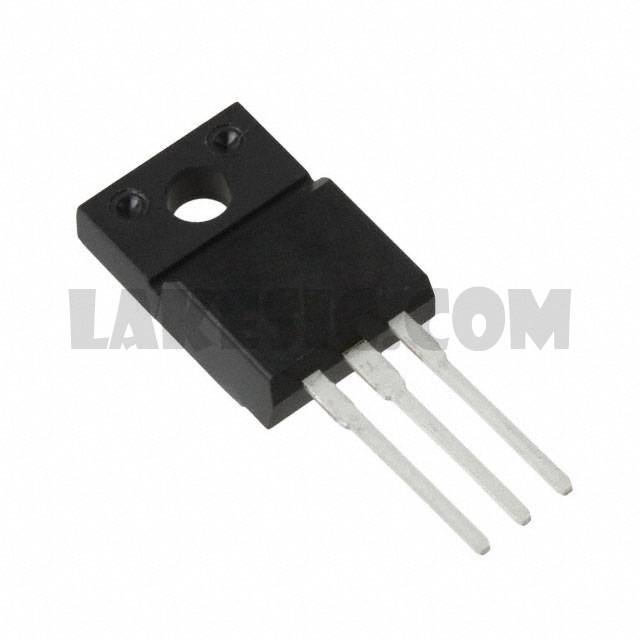

Package / CaseTO-220-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 9A (Tc) 51.4W (Tc) Through Hole TO-220F

To learn about the specification of GP1M009A060FH, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add GP1M009A060FH with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of GP1M009A060FH.
We are offering GP1M009A060FH for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

GP1M009A060FH - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

GP1M009A060(F)H

Standard Package

2000

Manufacturer

Global Power Technologies Group

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

600V

Current - Continuous Drain (Id) @ 25°C

9A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

1Ohm @ 4.5A, 10V

Vgs(th) (Max) @ Id

4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

27nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

1440pF @ 25V

FET Feature

Power Dissipation (Max)

51.4W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

TO-220F

Package / Case

TO-220-3 Full Pack
